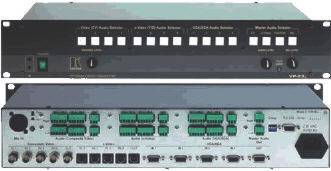

VP-23XL,
Presentation Switcher VP23XL
|
|
|
|
|
The VP-23xl is a 4x1
composite video, a 4x1 s-Video (Y/C) and a 4x1 computer graphics
video switcher each with balanced stereo audio. It is designed for
a wide variety of presentation and multimedia applications.
Typical
Applications:
|
|
|
FEATURES
|
|
-
High Bandwidth -
315MHz (- 3dB) computer graphics video, s-Video (Y) 260MHz (- 3dB),
470MHz (- 3dB) composite video
-
HDTV
Compatible.
-
Audio and Computer
Graphics Video Level (Gain) Controls.
-
Microphone Input
Level Control.
-
Master Audio Output
- Input selectable.
-
Talk Over Button -
Microphone input signal mutes the line audio output when a
microphone detects sound
-
Control - Front
panel, RS-232 (included KRouter ™ Windows® - based
software), & IR remote (included).
-
Standard 19”
Rack Mount Size - 2U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
4 VGA/XGA on HD-15F connectors, 4
s-Video, 1Vpp (Y), 0.3Vpp (C)/75Ω on 4p connectors, 4
composite video 1Vpp/75Ω on BNC connectors. Each input is
accompanied by the appropriate balanced audio stereo channels: +
4dBm/50 kΩ on detachable terminal block connectors. Mic: 3
mV/10 kΩ condenser/dynamic on an XLR
connectors |
|
|
OUTPUTS: |
1 x VGA/XGA, 1 s-Video - 1Vpp (Y),
0.3Vpp (C)/75Ω on a 4p connector,1 composite video
1Vpp/75Ω on a BNC connector. Each output is accompanied by
the appropriate audio stereo channel: + 4dBm/150Ω,;1 Master
audio + 4dBm/150Ω. |
|
|
MAX OUTPUT: |
Video: 2.1 Vpp; audio: 27
Vpp. |
|
|
BANDWIDTH (-3dB): |
XGA/VGA: 315MHz; s-Video (Y):
260MHz; composite video: 470MHz; audio: 40kHz. |
|
|
DIFF. GAIN: |
0.07 % all channels. |
|
|
DIFF. PHASE: |
0.05 Deg. all
channels. |
|
|
S/N RATIO: |
Video: 75dB all channels; audio:
75dB/1Vpp, all channels. |
|
|
CONTROL: |
16 selector switches; VGA/XGA level:
up to 4dB; audio: up to 6dB, Mic: up to 49dB, Mic Talk over switch,
Mic type selector switch (rear). |
|
|
POWER SOURCE: |
230VAC, 50/60Hz, (115VAC, U.S.A.)
16VA. |
|
|
DIMENSIONS: |
19-inch(W) x 7-inch(D) x 2U(H), rack
mountable. |
|
|
WEIGHT: |
3.7kg. (8.1lbs.)
approx |
|
|
ACCESSORIES:
|
Power cord, PC control
software. |
|
|
|
|
|
