VP-128H,
Matrix Switcher VP128H VP128-H
|
|
|
|
|

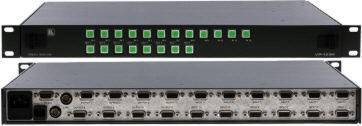

The VP-128H is a
high performance matrix switcher for computer graphics video
signals, with resolutions ranging from VGA through UXGA and higher
on HD-15 connectors. It can route any or all inputs to any or all
outputs simultaneously
Typical
Applications:
|
|
|
FEATURES
|
|
-
Bandwidth - 315MHz
(- 3dB) fully loaded.
-
Memory Locations -
Store multiple switches as presets to be recalled and executed when
needed.
-
Delayed SwitchingTM
- Switches sync ahead of video to provide near glitch-free
switching of nongenlocked sources
-
Linear Sync
Processing - to process nonstandard sync signals.
-
Vertical Interval
Switching.
-
Looping Analog Sync
Input.
-
Control - Front
panel (removable for remote operation), RS-232 (K-Router™
Windows® - based software is included), and
Ethernet
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
12 analog red, green, blue signals -
0.7 Vpp / 75Ω; H & V syncs, TTL level on HD15F connectors.
The H and V channels are not TTL, they are linear. |
|
|
OUTPUTS: |
8 analog red, green, blue signals -
0.7 Vpp / 75Ω; H & V syncs, TTL level on HD15F connectors.
The H and V channels are not TTL, they are linear |
|
|
MAX. OUTPUT LEVEL: |
+/- 1.5V |
|
|
BANDWIDTH (-3dB): |
315MHz, Fully Loaded |
|
|
DIFF. GAIN: |
< 0.06 % |
|
|
DIFF. PHASE: |
< 0.17
deg. |
|
|
K-FACTOR: |
<0.05% |
|
|
S/N RATIO: |
60dB weighted to
5MHz |
|
|
CROSSTALK (all
hostile): |
> 45dB@150MHz |
|
|
CONTROLS: |
24 front panel switches,
RS-232 |
|
|
COUPLING: |
DC |
|
|
POWER SOURCE: |
90-240VAC 47-63Hz,
30VA |
|
|
DIMENSIONS: |
48.3cm x 30.5cm x 4.5cm (19-inch x
12-inch x 1U, W, D, H) rack mountable |
|
|
WEIGHT: |
5.5 kg. (12.2 lbs.)
approx. |
|
|
ACCESSORIES:
|
Power cord, Null modem
adapter, Control software |
|
|
|
|
|
