Sachtler Tripod System Ace XL FT 75
Product Code: 1017

		| Ace XL FT MS 75 |  |

		| Ace XL FT GS 75 |  |



Features
- Ace XL fluid head with flowtech™75 tripod legs
- Ideal for cameras weighing up to 8 kg / 17.6 pound
- Easy to setup
- 8-Step Counterbalance
- 3-Pan/Tilt Drag Grades
- Ergonomic carbon fibre design with strong magnetic leg
locks

|
|

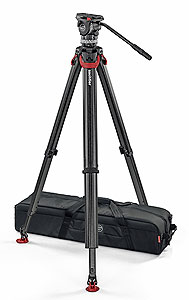

The Sachtler 1017 System Ace XL
fluid head with flowtech™75
tripod legs offers a tripod
system for videographers who use
cameras weighing up to 8 kg /
17.6 pounds. The Ace XL system
enables broadcast-style
performance while using
lightweight components more
suited to HDSLRs and compact
camcorders. The Ace XL fluid
head features
fiberglass-reinforced composite
construction and weighs only 1.7
kg / 3.7 pounds. The two-stage
carbon fiber legs weigh only 2.9
kg / 6.4 pounds. This makes the
system lightweight at only 4.8
kg / 10.6 pounds.
 The
unique flowtech™75 is easier and
faster to deploy and adjust than
any other tripod.

 Supports cameras with up to 8 kg
/ 17.6 lb, 8-Step
Counterbalance, 3-Pan/Tilt Drag
Grades, system includes Ace XL
fluid head (S2150-0004) + tripod
flowtech 75 with rubber feet FT
+ padded bag 75 (9116);
flowtech™75 is a 2-stage 75 mm
carbon fibre tripod with unique
quick release brakes for instant
and easy deployment, ergonomic
carbon fibre design with strong
magnetic leg locks for
comfortable transport,
exceptional torsional stiffness
and a versatile hinge lock
mechanism for low and high
shots.

 |
|
| Fluid head: | ACE XL |
| Tripod: | FLOWTECH 75 MS |
| Weight: | 4.8 kg |
| Payload: | 2 – 8 kg |
| Height range: | 41 – 169 cm |
| Head fitting: | 75 mm |
| Transport length: | 85 cm |  |  |
