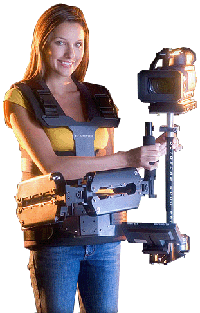

Glidecam X-10 Camera Stabilizer |
The GLIDECAM X-10 System includes:
1. Glidecam X-10 Support Arm
2. Glidecam Support Vest
3. Docking Bracket
4. Stainless Steel Arm Post (1)
5. Aluminum Arm Post (1)
6. Steel Weight Plates (6)
7. Hardware and Operations Manual. |
Product Code: X10
|
|
|
Glidecam X-10 Support Arm |
The GLIDECAM X-10’s Dyna-Elastic™ Dual-Articulating Support Arm incorporates 38 precision radial bearings within its machined T6 aluminum
structure. The placement and implementation of these double-shielded bearings produce minimal friction and allow the Dyna-Elastic™ Support Arm to pivot and boom very smoothly, and with virtually no noise.
Four high-carbon alloy, Extension Springs are employed within the Support Arm’s hardcoat anodized Exo-Skeletal Shells. Utilizing Class Three Levers, the energy of the Extension Springs
acts upon internal Fulcrum Points, and provides the Support Arm with its lifting power. The spring tension is field adjustable and allows for varying camera weights.
Our proprietary spring Inter-X-Change™ system makes the installation and removal of the springs quick and easy. The Support Arm can be setup and used in either a Two-Spring Mode, or a
Four-Spring Mode. In the Two-Spring Mode, the Support Arm can hold a total combined camera and hand-held stabilizer weight of 9 pounds. In the Four-Spring Mode, the Support Arm can hold a total
combined camera and hand-held stabilizer weight of 18 pounds.
A key design feature of the Support Arm is that it incorporates our Light-Force™ technology. This literally means that only a "light" force or effort is required by the operator to hold the arm
at any given position, or to boom the arm up and down. It is this Light-ForceTM feature that provides the operator with the optimum amount of camera buoyancy or float. |
|
|
|
Glidecam X-10 Support Vest |
The Glidecam X-10 Support Vest is lightweight, comfortable and can be adjusted to fit a wide range of operators. High endurance, dual
density, EVA foam padding and integral T6 aluminum alloy create a vest which can hold and evenly distribute the weight of the system across the operator's shoulders, back, and hips. For safety, quick
release, high impact buckles allow the vest to be removed quickly. The Vest’s outer shell is made of 1000 denier cordura fabric, and 7-panel seat belt strapping, noted as being the best in the industry.
The Glidecam X-10 Support Vest incorporates a unique and proprietary Arm-to-Vest Connector that allows the angle of the Support Arm to be adjusted relative to the Support Vest. This
Trimming Mechanism allows you to neutralize the weight of the Support Arm relative to your body’s center of gravity. When set correctly the effort required while shooting is greatly
reduced. Another unique and proprietary feature of the Arm-to-Vest Connector is that it allows the Support Arm to be attached and removed from the Vest without affecting the operator’s
selected trim settings. |
|
