Gold System

Glidecam Gold System with NP-1 Style Base
               Product Code: GoldSystem

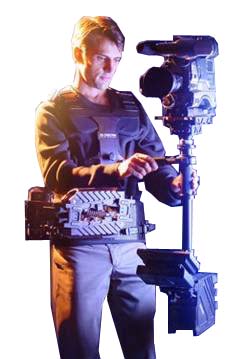

For cameras weighing from 13 to 38 pounds. Includes: 2" central post with dedicated HD-SDI video line, Gold Vest, Arm, Sled with V-Lock base, L7-Pro monitor, LCD/V-Lock battery mount, Gold Docking Bracket, Video & Power cables

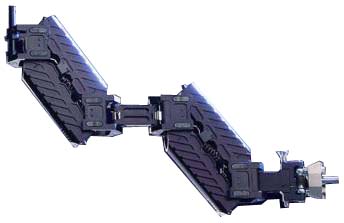

The Glidecam Gold Arm™ incorporates sophisticated engineering and precision machining to make it lightweight and strong. Six Titanium springs allow the Gold Arm to handle a camera load of 13 to 38 pounds. Its combined camera and sled carrying capacity ranges from 31 to 56 pounds. For added strength and durability our vest connectors are made of Titanium. The arm to vest socket pin connector is also made of Titanium.

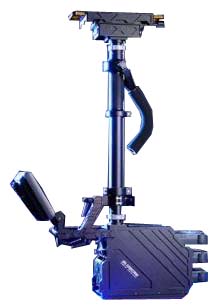

The new Glidecam Gold Sled™ holds any video or film camera weighing from 13 to 38 pounds. The Gold Sled incorporates sophisticated engineering and precision machining to make it lightweight and strong. It is designed with the same look and aesthetics as the Glidecam Gold Arm and Vest. The Gold Series sled is available with one of the various daylight viewable, LCD monitors that we also sell (call us for details). The black parts of the Glidecam Gold Sled are anodized black with certain parts hard coated black


The Sled’s “no-tools” precision Gimbal is made to top of the line quality. The Gimbal incorporates 4 bearings inside the handle to yoke connection (the tilt axis). There are 2 bearings on each side of the yoke, providing 4 bearings for the roll axis. There are 2 central main bearings for the pan axis. This doubles the Gimbal’s thrust capacity and creates less than a .0002” deflection off true center. All Gimbal parts are machined within .0005” accuracy and are hard coat black. A very tight knurling has been machined onto the Gimbal Tube to improve handling. An easy to replace soft foam covers the handle grip.
