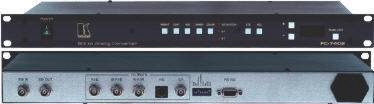

FC-7402, SDI
to Analog Converter FC7402
|
|
|
|
|
The FC-7402 is a
format converter for SDI (SMPTE 259M) signals. It converts an SDI
video signal to composite video, s-Video (Y/C), and RGB/component
(RGsB or YUV) video
Typical
Applications:
-
Broadcast and
production video studios.
-
Postproduction and
duplication studios.
-
Non-linear editing
and monitoring SDI signals on analog video
equipment.
|
|
|
FEATURES
|
|
-
Bandwidth - 5.7MHz
(- 3dB).
-
Multi-Standard - PAL
(B/D/G/H/I/Combination N), SECAM, NTSC (3.58/4.43).
-
NTSC Decoding
Options - With or without 7.5IRE setup (pedestal).
-
Proc-Amp Control -
Brightness, contrast color (saturation), sharpness, and hue (NTSC
Only)
-
Color Space - RGB
& YUV (selectable).
-
Control - Front
panel and RS-232 (included Windows® - based
software).
-
Resolution - 10
bit.
-
Non-Volatile
Memory.
-
Color Bar Generator
- Built-In 75% color bar generator with timing referenced to SDI
Input
-
Looping Input -
reclocked and equalized.
-
Front Panel
Lockout.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
1 SDI: SMPTE - 259M, ITU-R BT.601
(CCIR-601) 75Ω on a BNC connector. |
|
|
OUTPUTS: |
1 composite video - 1Vpp/75Ω
on a BNC connector. 1 YC - 1Vpp/75Ω (Luma), 0.3Vpp/75Ω
(Chroma) on a 4p connector. 1 component - RGB / Y, R-Y, B-Y (1V,
0.7V, 0.7V/75Ω) on BNC connectors. 1 SDI (reclocked): SMPTE -
259M, ITU-R BT.601 (CCIR-601) 75Ω on a BNC
connector |
|
|
RESOLUTION: |
10-bit. |
|
|
BANDWIDTH (-3dB): |
5.7 MHz, Fully
Loaded. |
|
|
NON-LINEARITY: |
+/-1.0%. |
|
|
DIFF. GAIN: |
0.11% (NTSC). |
|
|
DIFF. PHASE: |
0.33 deg (NTSC). |
|
|
K-FACTOR: |
0.3%. |
|
|
S/N RATIO: |
67dB unweighted. |
|
|
YC DELAY: |
< 20ns. |
|
|
EQUALIZATION: |
> 125m for Belden 8281
cable. |
|
|
CONTROL: |
Level: - RS-232 and front panel:
brightness, contrast, color (saturation and separate U, V), hue,
and sharpness. Front panel lock. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115 VAC, USA)
13.8 VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.6 kg. (5.7 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord. |
|
| |
|
|
|
|
