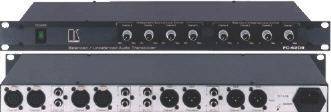

FC-4208, Balanced Audio
Transcoder FC4208
|
|
|
|
|
The FC-4208 is an
audio transcoder for balanced and unbalanced audio signals. It
simultaneously converts 4 channels of balanced audio signals on XLR
connectors, to 4 channels of unbalanced audio signals on RCA
connectors and 4 channels of unbalanced audio signals on RCA
connectors to 4 channels of balanced audio signals on XLR
connectors.
Typical
Applications:
-
Video and audio
production facilities.
-
Audio recording
studios.
-
Professional display
systems.
-
Live sound
reinforcement applications.
|
|
|
FEATURES
|
|
-
Bi-directional
Format Conversion - Balanced audio to unbalanced audio and
unbalanced audio to balanced audio simultaneously.
-
Audio Level (Gain)
Controls - 8 channels.
-
S/N Ratio - >
89dB.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
4 balanced +4dBm/50kΩ on
female XLR connectors. 4 unbalanced 1Vpp/50kΩ on RCA
connectors |
|
|
OUTPUTS: |
4 unbalanced 1Vpp/49Ω on RCA
connectors. 4 balanced +4dBm/49Ω on male XLR
connectors. |
|
|
MAX. OUTPUT: |
18Vpp. |
|
|
BANDWIDTH (-3dB): |
30 kHz. |
|
|
S/N RATIO: |
Better than 89 dB. |
|
|
THD: |
Less than 0.02%. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz (115VAC, U.S.A.)
3.7 VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.4 kg. (5.3 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord. |
|
| |
|
|
