FC-6801,

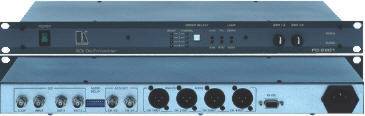

Audio De-Embedder FC6801
|
|
|
|
|
The FC-6801 is an
audio de-embedder for SDI (SMPTE 259M) video signals that contain
embedded audio. The SDI embedded input will be de-embedded
simultaneously into 2 standard SDI video outputs, 2 AES/EBU digital
audio outputs (on BNC connectors) and 2 balanced stereo audio
outputs (on 4 XLR connectors).
Typical
Applications:
|
|
|
FEATURES
|
|
-
Input - 1 SDI with
embedded Audio.
-
Looping
Input.
-
Outputs - 2 SDI, 2
AES/EBU audio and 4 balanced audio.
-
Control - Front
panel and RS-232.
-
Audio Delay -
Adjustable via dip switches.
-
Audio Level (Gain) -
Grouped channels 1-2 and 3-4.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
1 x SDI looping with embedded audio
(SMPTE-259M, SMPTE-272M) on BNC connectors |
|
|
OUTPUTS: |
2 x SDI (SMPTE-259M) with EDH; 2 x
AES-EBU on BNC connectors; 4 x balanced audio on XLR-M
connectors. |
|
|
MAX. AUDIO OUTPUT
LEVEL: |
20Vpp. |
|
|
CONTROLS: |
Analog audio level control; Delay
setting; Audio group select. Max Audio Delay: 1.024secs; Steps: 128
increments 0.008secs. |
|
|
COUPLING: |
DC |
|
|
POWER SOURCE: |
100-230VAC 50/60Hz
20VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.5 kg. (5.5 lbs.)
approx. |
|
|
ACCESSORIES: |
Windows® - based Kramer control
software, Null-modem adater. Power cord. |
|
| |
|
|
