FC-4044,

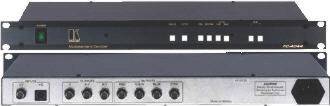

CV/s-Video to RGB & Component Decoder FC4044
|
|
|
|
|
The FC-4044 is a
format converter for composite video or s-Video (Y/C) signals. It
converts the input simultaneously to either RGBS or RGsB and
component video (YUV) outputs.
Typical
Applications:
-
Video production,
editing, and duplication studios.
-
Professional display
systems requiring format change for compatibility with
switching/routing systems or display devices
-
Rental and
staging.
|
|
|
FEATURES
|
|
-
Bandwidth - 5MHz (-
3dB).
-
Inputs - Composite
video or s-Video (selectable).
-
Multi-Standard -
PAL, SECAM, NTSC 3.58/ 4.43 (selectable).
-
Output Sync - RGsB
or RGBS (selectable).
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
1 composite video - 1Vpp/75Ω
on a BNC connector.1 YC: 1Vpp/75Ω (Luma), 0.3Vpp/75Ω
(Chroma) on a 4p type connector. |
|
|
OUTPUTS: |
1 component - (Y, R-Y, B-Y) 1V,
0.7V, 0.7Vpp/75Ω on BNC connectors.1 RGB: 0.7Vpp/75Ω,
for 100% saturation, on BNC connectors.Composite sync -
2Vpp/75Ω, negative polarity. |
|
|
NON LINEARITY: |
0.2 %. |
|
|
K-FACTOR: |
1.2 %. |
|
|
CONTROL: |
Standards selection by front touch
switches, automatic or manually forced. Composite/YC front touch
switch selection. Green/green + sync and HUE control (NTSC only)
via front touch switches. |
|
|
DC CLAMP ERROR: |
+/- 20 mV. |
|
|
RESIDUAL SC: |
Composite to Y=30mV, YC to Y =
15mV. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115VAC, U.S.A.)
6.9 VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D), 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.6 kg. (5.8 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord. |
|
| |
|
|
