Sony PXW-Z100 1/2.3 3-inch type Exmor R CMOS sensor 4K compact XDCAM camcorder recording on XAVC format

Home > Sony > XDCAM > PXW-Z100 (Discontinued)
Sony PXW-Z100
Product Code : PXWZ100
Discontinued
review button
facebook sharegoogle share

  • CasePro
    Bodyguard542

    Bodyguard542
    Bodyguard542
    Buy Sell Sales Casepro Bodyguard 542

  • Optional Accessories
    Sony Headphone
    Sony MDR-7506

    MDR-7506

    Buy Sell Sale Sony MDR-7506

[e_shop/Popular_Related_Product/Recording_Media/SQD_Card.htm]
New memory: new firmware
Sony's recording media product line continues to expand with new releases in the SxS and XQD media product categories.

Available from Spring 2017 are SxS Pro+ models SBP-64E, SBP-128E and SBP-256E. Available now are SxS-1 models SBS-64G1C and SBS-128G1C, plus XQD Memory cards QD-G64E, QD-G128E, QD-G256E, QD-M64, QD-M128.

The following cameras and recorders need updated firmware to support the new media. If a product is not listed, there is no need for a firmware update.
https://pro.sony-asia.com/pro/lang/en/sg/article/broadcast-products-camcorder-recording-media-new-memory-new-firmware

Affordable Professional 4K for any application
4K (4096x2160) 50p or 60p Shooting

XAVC Recording Format at 4K 50p/60p, 4:2:2 10-bit at 500/600Mbps, HD at up to 223Mbps
XQD Memory Card Recording
HDMI Interface for 4K Output and 3G HD-SDI Interface for HD Output
Remote Control with WiFi



Sony PXW Z100: Overview


Sony PXW-Z100



Professional handheld camcorder records 4K using the XAVC format on to XQD solid state memory cards
Sony PXW-Z100 professional 4K handheld XDCAM camcorder features a 1/2.33-inch Exmor R CMOS sensor with 16 million pixels. The camcorder is ideal for creating stunning 4K content (4096 x 2160) at 50 fps (frames per second) or 60 fps. The camcorder makes it easier for everyone from

high-end cinema to entry-level productions to work in the 4K world.

Stunning 4K, QFHD or HD images in lightweight camcorder
Sony PXW-Z100, together with the fixed 4K-compatible high-performance G Lens, weighs less than 3kg. It uses the XAVC recording format first used in the PMW-F55 CineAlta camera. As with the F55, 4K (4096 x 2160, 50fps or 60fps. 4:2:2, Intra-frame,10-bit recording in MXF file format) is

possible at a high-bit rate of 500Mbps or 600Mbps. QFHD (3840 x 2160) and HD (1920 x 1080) resolutions can also be selected, both of which are compatible with most 4K TV's.



XDCAM Camcorder PXW-Z100 firmware update to version 2.0

[Contents of update]

1.     It corrects so that the sound from the internal microphone can record correctly, when the internal microphone is chosen both 1ch, 2ch.

2.     HDMI2.0 Compatibility

      • HDMI 4K / 59.94p (50P) transmission compatibility (YCbCr 4:2:0 / 8bit)
      • Additional Video Format
      • Shutter Speed Setting during S&Q Motion



Sony PXW Z100: Features



Sony PXW-Z100

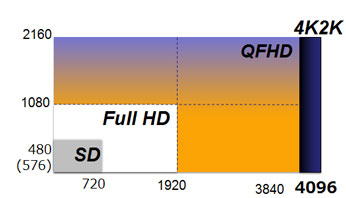

4K (4096 x 2160) 50fps or 60fps shooting

The camcorder provides good sensitivity due to the back-illuminated Exmor™ R CMOS sensor. With 8 million effective pixels, the 1/2.33" sensor captures 4K images at 50fps or 60fps. The inbuilt high-performance G Lens offers maximum shooting flexibility, including a wide angle of 29.5mm (equivalent to 35mm) and 20x powerful optical zoom.



Sony PXW-Z100

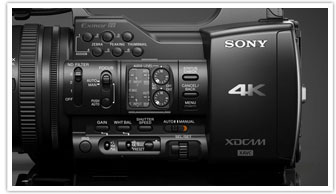

XAVC recording format at 4K 50fps/60fps, 4:22 10-bit at 500/600Mbps, HD at up to 223Mbps

The PXW-Z100 uses Sony's XAVC recording format first employed in the PMW-F55 CineAlta 4K camera. MPEG-4 AVC/H.264 compression is used for HD (1920 x 1080), QFHD (3840 x 2016) and 4K (4096 x 2160) content. Image sampling is 4:2:2 10-bit, with an intra-frame system that compresses each frame individually at a maximum bit rate of 500Mbps or 600Mbps during 4K 50fps or 60fps recording respectively and 223Mbps during HD 50fps or 60fps recording. The XAVC format is ideal for those looking to implement a high-quality, secure and worry-free workflow.

A free firmware update is planned for the middle of 2014 to support the LongGOP mode for extended 4K recording time and to add support for AVCHD recording, a format that until now has been compatible with the playback environment of Blu-ray Discs.



Sony PXW-Z100

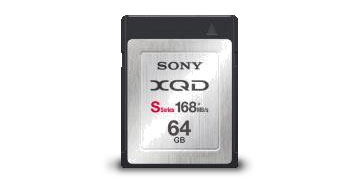

XQD Memory Card recording

The XQD Memory Card* is a new standard of solid state memory, which was recently defined by several industry leading companies. XQD uses the ultra-fast PCI Express interface and Sony's unique camera processor to enable stable video recording at 500Mbps or 600Mbps. The PXW-Z100 features two XQD Memory Card slots. Multiple cards can be used in various ways, such as for relay recording. When the first card becomes full, recording continues on the second card without a break.

* XQD cards have a write speed of up to 800Mbps. The use of S Series cards with 180MB/s writing speed is recommended.



Sony PXW-Z100

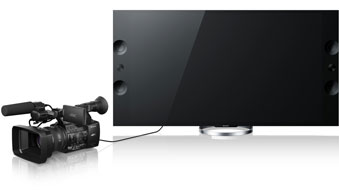

HDMI interface for 4K output and 3G HD-SDI interface for HD output

The HDMI interface on the PXW-Z100 can output 4K as a 50fps/60fps signal. When the PXW-Z100 is connected to a Sony 4K-compatible BRAVIA TV, the recorded 4K image can be displayed in 4K 50fps/60fps quality. A future firmware upgrade is planned to provide compatibility with the new HDMI 2.0 standard and enable 4K 50fps/60fps output to a wider range of devices. Other features include a 3G HD-SDI interface that supports output to an SDI of up to HD 60fps. It also supports HD output during 4K recording.



Sony PXW-Z100

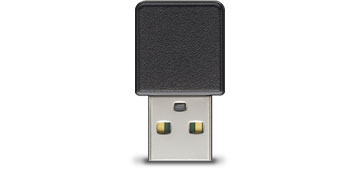

Remote control with WiFi

Focus, zoom, aperture settings and 'record start/stop' can be remote controlled using the browser function of a smartphone or tablet.



Paint function for more creative freedom

The PXW-Z100's paint function enables multiple image parameters to be adjusted including gamma curve, black level, skin detail and colour. The range of settings is similar to those in the PMW-F55. Together with other setting options, parameter settings can be recorded as a camera profile onto a memory card. The recorded camera profile can then be used to set the same parameters in another PXW-Z100 to enable the matching of quality and image tones when using a multi-camera setup.



PXW-Z100 Supplied Accessories
Lens hood (1). Pre-installed to the Camcorder
EVF eyecup (1)
USB cable (1)
AV connecting cable (1)
AC-NB12A AC adaptor (1)
HDMI Cable (1)
Wi-Fi dongle (1)
ECM-XM1Microphone (1)
Operating instructions (1)
Battery Charger (1)
NP-F970 Battery (1)
Warranty (1)
CD-ROM: Operating instructions in PDF (1)


Sony PXW-Z100 Review

review


Firmware Update PXW-Z100 ver.5.10

** Admin **

• compatibility with Sony XQD M series memory card
* Please refer to the operating instructions for supported Rec Format settings.
• Image quality improvement regarding XAVC-L and AVCHD recording
https://pro.sony-asia.com/pro/lang/en/hk/support/software/SET_150716_PSG/50
