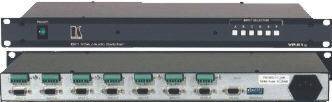

VP-61XL, 6x1
VGA/XGA/Audio Switcher VP61XL VP61-XL
|
|
|
|
|
The VP-61xl is a
high performance switcher for computer graphics video signals, with
resolutions ranging from VGA through UXGA and higher, and balanced
stereo audio signals. The VP-61N has all the same features of the
VP-61xl but without audio
Typical Applications:
-
Any professional
display system requiring simple six way input
selection.
-
Multimedia and
presentation source selection
-
Remote monitoring of
computer activity in schools and businesses
-
Rugged enclosure and
standard AC power cable are suitable for rental/staging
applications
|
|
|
FEATURES
|
|
-
High Bandwidth -
400MHz (- 3dB).
-
HDTV
Compatible.
-
VP-61N - Same as
VP-61xl but without audio
-
Control - Front
panel & RS-232 (K-Router™ Windows® - based software
is included)
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
6 analog red, green, blue signals -
0.7 Vpp/75Ω, H & V syncs, TTL level on HD15F connectors.
6 balanced audio stereo signals, + 4dBm typical, 24dBm max. on
detachable terminal blocks |
|
|
OUTPUTS: |
One analog red, green, blue signal -
0.7 Vpp/75Ω, H & V syncs, TTL level on an HD15F
connector. One balanced audio stereo signal, + 4dBm typical, 24dBm
max. on a detachable terminal block. |
|
|
BANDWIDTH (-3dB): |
400 MHz. (video) 100kHz.
(audio). |
|
|
SWITCH TIME: |
Less than 5ms. |
|
|
SWITCH CONTROL: |
Six electronic illuminated touch
switches with electronic interlock. RS-232 via an additional DB-9
connector on rear panel. |
|
|
COUPLING: |
Direct. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115VAC, U.S.A.)
3 VA. |
|
|
DIMENSIONS: |
19 inch (W), 7 inch (D) 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.7kg. (6 lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord, Windows®-based
control software. |
|
| |
|
|
