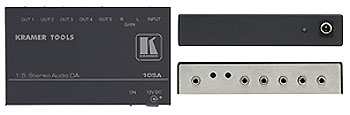

The 105A is a high−performance distribution
amplifier for unbalanced stereo audio signals. It takes one stereo input and
distributes the signal to five identical stereo outputs.
Features:
• Level (Gain) Controls.
• S/N Ratio - 80dB (unweighted).
• Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack
space with the optional RK−3T rack adapter.
Applications:
• Video/audio duplication studios
• Retail showrooms, home theater systems
• Any audio system requiring multiple outputs from a single source
|
|
INPUT: |
1 unbalanced stereo/balanced mono, 1Vpp/33kΩ
on a 3.5mm mini jack. |
|
OUTPUTS: |
5 unbalanced stereo/balanced mono, 1Vpp/50Ω
on 3.5mm mini jacks. |
|
MAX. OUTPUT: |
5Vpp. |
|
AUDIO BANDWIDTH (-3dB): |
20kHz. |
|
S/N RATIO: |
80dB unweighted. |
|
CONTROL: |
Left and right gain rear trimmers (0 to
+3.5dB). |
|
COUPLING: |
AC. |
|
AUDIO THD + NOISE: |
0.03% (2nd harmonic). |
|
POWER CONSUMPTION: |
12V DC, 100mA. |
|
DIMENSIONS: |
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”)
W, D, H. |
|
WEIGHT: |
0.28kg (0.62lbs) approx. |
|
INCLUDED ACCESSORIES: |
Power supply, mounting bracket. |
|
OPTIONS: |
RK−3T 19" rack adapter. |
|
|
|
