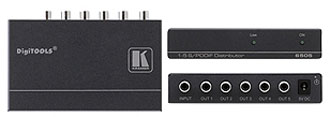

The 6505 is a high−performance distribution
amplifier for S/PDIF digital audio signals. The unit takes one S/PDIF input and
distributes the signal to five identical S/PDIF outputs.
Features:
• Input - 1 RCA connector.
• Output - 5 RCA connectors.
• Sampling Rates - 32kHz to 96kHz.
• Signal Re-clocking & Re-sampling - Enables transmission of S/PDIF
signals over longer distances.
• Size - Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in
a 1U rack space with the optional RK-3T rack adapter. - compatible with RK-3T
19-inch rack adapter for mounting 3 Kramer TOOLS™ into a 1U rack space.
Applications:
• Video and audio production facilities.
• Recording studios, for connecting a source to several acceptors. |
|
INPUT: |
1 S/PDIF on an RCA connector. |
|
OUTPUTS: |
5 S/PDIF on RCA connectors. |
|
STANDARDS: |
CP1201, IEC−60958, AES−3id and S/PDIF. |
|
SAMPLE RATE: |
32kHz to 96kHz. |
|
INPUT IMPEDANCE: |
75Ω. |
|
OUTPUT IMPEDANCE: |
75Ω. |
|
POWER CONSUMPTION: |
5V, 120mA. |
|
OPERATING TEMPERATURE: |
0° to +40°C (32° to 104°F). |
|
STORAGE TEMPERATURE: |
−40° to +70°C (−40° to 158°F). |
|
HUMIDITY: |
10% to 90%, RHL non−condensing. |
|
DIMENSIONS: |
12cm x 6.95cm x 2.44cm (4.72" x 2.74" x
0.96") W, D, H. |
|
WEIGHT: |
0.3kg (0.66lbs) approx. |
|
INCLUDED ACCESSORIES: |
Power supply, mounting bracket. |
|
OPTIONS: |
RK−3T 19" rack adapter. |
|
|
|
