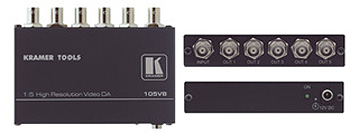

The 105VB is a high−performance distribution
amplifier for composite video signals. It takes one input, provides correct
buffering and isolation and distributes the signal to five identical outputs.
Features:
•
Bandwidth -
400MHz (−3dB).
•
Connectors - BNC
(105V has RCA).
•
Level (Gain)
Control.
•
Compact Kramer
TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the
optional RK−3T rack adapter.
Applications:
• Video
duplication studios.
• Any professional
display system requiring an identical picture on several monitors.
• CCTV and home
theater use.
• Rental and
staging applications. |
|
INPUT: |
1 composite video, 1Vpp/75Ω on a BNC
connector. |
|
OUTPUTS: |
5 composite video, 1Vpp/75Ω on BNC
connectors. |
|
MAX. VIDEO OUTPUT: |
2Vpp. |
|
VIDEO BANDWIDTH (-3dB): |
400MHz. |
|
DIFF. GAIN: |
0.1%. |
|
DIFF. PHASE: |
0.1Deg. |
|
K-FACTOR: |
<0.05%. |
|
S/N RATIO: |
80dB. |
|
CONTROL: |
Up to +6dB. |
|
COUPLING: |
AC. |
|
POWER CONSUMPTION: |
12V DC, 100mA. |
|
DIMENSIONS: |
12cm x 7.5cm x 2.5cm (4.7” x 2.95” x 0.98”)
W, D, H. |
|
WEIGHT: |
0.3kg (0.66lbs) approx. |
|
INCLUDED ACCESSORIES: |
Power supply, mounting bracket. |
|
OPTIONS: |
RK−3T 19” rack adapter. |
|
|
|
