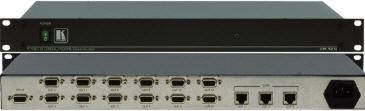

VP-12N, 1:12
Computer Graphics Video Distribution Amplifier with 3
Twisted
|
|
|
|
|
The VP-12N is a high
performance distribution amplifier for computer graphics video
signals. It takes one input, provides correct buffering and
isolation, and distributes the signal to 12 computer graphics
outputs on 15-pin HD connectors and three twisted pair
outputs.
|
|
|
FEATURES
|
|
-
Bandwidth - (-3dB):
330MHz (15pin HD); 156MHz (CAT5).
-
HDTV
Compatible
-
Twisted Pair
Connectors - RJ-45 connectors.
-
Control - RGB Level
(Gain), ID bit.
-
Twisted Pair Output
- Requires a computer graphics video twisted pair receiver to
convert the twisted pair signal back into a computer graphics video
signal.
-
System Range
(Twisted Pair) - Up to 100 meters (300’).
-
Cable (Twisted Pair)
- UTP (unshielded twisted pair) such as CAT 5.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
|
INPUTS: |
1 UXGA on an HD15F
connector. |
|
| OUTPUTS: |
12 UXGA on HD15F connectors 3 RJ-45 OUT
connectors. |
|
|
MAX. OUTPUT LEVEL: |
UXGA: 1.7Vpp; CAT5:
1.3Vpp. |
|
| BANDWIDTH (-3dB): |
UXGA: 330MHz; CAT5: 156MHz. |
|
|
DIFF. GAIN: |
0.17% (UXGA). |
|
| DIFF. PHASE: |
0.44 Deg. (UXGA). |
|
|
K-FACTOR: |
< 0.05%. |
|
| S/N RATIO: |
UXGA: 73dB; CAT5: 70dB |
|
|
CONTROLS: |
Level: -0.8dB to
2.4dB. |
|
| COUPLING: |
UXGA: DC; CAT5: AC. |
|
|
POWER SOURCE: |
230 VAC, 50/60Hz (115VAC, U.S.A.)
31VA. |
|
| DIMENSIONS: |
19 inch (W), 7 inch (D) 1U (H) rack
mountable |
|
|
WEIGHT: |
2.7kg (6lbs) approx. |
|
| ACCESSORIES: |
Power cord. |
|
| |
|
|
