VM-1010, 1:10

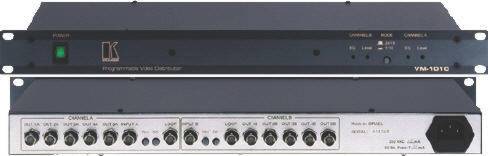

Dual Mode Video Distribution Amplifier VM1010
|
|
|
|
|
The VM-1010 is high
performance distribution amplifier for composite video. It can be
configured as a 1:5 distribution amplifier for s-Video (Y/C)
signals and has controls to compensate for signal losses inherent
in long cable runs.
Typical
Applications:
-
Broadcast,
duplication, and production facilities.
-
Retail stores,
delivering an identical picture to several monitors.
-
Computer RGB or
video component distribution using several machines operating in
parallel.
-
CCTV and security
applications.
|
|
|
FEATURES
|
|
-
High Bandwidth -
235MHz (- 3dB).
-
Dual-Mode: Configure
as either a 1:10 (Composite) or 1:5 s-Video) DA
-
Grouped Level (Gain)
and EQ (Peaking) Controls.
-
Video AC/DC Coupling
Selection
-
Looping
Inputs
-
Selectable Input
Signal Termination.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| INPUT: |
2 composite/component video, looping, 1Vpp/75Ω on BNC
connectors with termination switch |
|
|
OUTPUTS: |
2 x 5 composite/component video, 1
Vpp/75Ω on BNC connectors. |
|
| MAX. VIDEO OUTPUT: |
1.8 Vpp. |
|
|
VIDEO BANDWIDTH
(-3dB): |
235 MHz. |
|
| DIFF. GAIN: |
0.2 %. |
|
|
DIFF. PHASE: |
0.04 Deg. |
|
| K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
77dB. |
|
| NON LINEARITY: |
0.2%. |
|
|
CONTROL: |
Level front trimmers: -1.4dB/+2.5dB,
EQ. trimmers: 0/+2.5dB @ 4.4MHz |
|
| COUPLING: |
DC or AC (user selectable). |
|
|
POWER SOURCE: |
230VAC 50/60 Hz (115V U.S.A.), 10.3
VA. |
|
| DIMENSIONS: |
19 - inch (W), 7-inch (D) 1U (H) rack
mountable. |
|
|
WEIGHT: |
1.98 kg (4.4 lbs.)
approx. |
|
| ACCESSORIES: |
Power cord. |
|
| |
|
|
