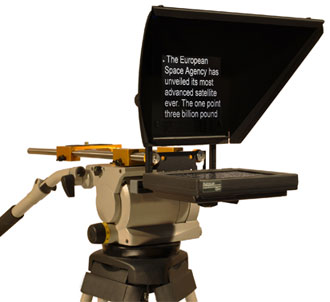

The PSP 8 has been designed for indoor DV and
ENG camera shoots where portability and lightweight equipment is paramount
• Clear and crisp prompting image (500
Nits) recommended for all but the most extreme sunlight or studio lighting
• Mount to an ENG camera on matte box bars or chroziel adaptors for an extremely lightweight solution or to a standard
shoulder mount using our versatile Gold Plate which slides backwards and forwards to accommodate any size of camera (DV or ENG).
• The PSP 8 uses the same lightweight and collapsible hood as
the Master Series, enabling easy transportation. The hood moves up and down to enable you to shoot through the centre of the glass with no need to raise the camera.
• The PSP 8 features image reverse on the monitor ensuring
that the software doesn't need to work so hard, providing a smoother scroll for the operator
• A 5" image reversing prompter monitor can be substituted
for the 8" for an even lighter solution.
Specifications
Hardware
Size: 8” (203 mm)
Reading Range: 3 m (10 ft)
Brightness: 500 Nits
Aspect Ratio: 4:3
Contrast Ratio: 500:1
Resolution: 640 x 480
Image Reverse: Yes
Tally Light & Sensor Ready: No
Video Inputs: BNC (composite), VGA (by request)
Weight: 3.1 kgs (7 lbs)
Compliance: CE, FCC, ROHS
Included in the package
• 8” LCD prompter
monitor with BNC connector (VGA by request)
• Lightweight and collapsible small wide-angle hood and bracket system to accomodate all cameras and lens types without the
need for a riser
• Versatile camera mounting plate (Gold Plate) which slides back and forth to enable use of any DV or ENG camera (additional camera plate available to provide extra stability with ENG style
cameras)
• Broadcast quality prompter glass (70:30), designed to produce the clearest mirror image and the optimal light to the
camera
• 25m composite cable
• Quick installation guide and detailed electronic user manual
• Full warranties – 1 year for prompter monitor; 3 years for prompter hardware
|
