The Manual Conference System is designed for corporate conferences or other events where a speaker is addressing an audience.

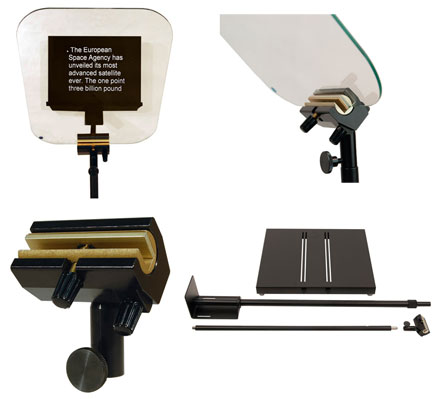

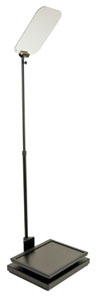

When erected, the prompting system resembles a
mic stand with a piece of glass attached to the top of it. From the audience's perspective, the high quality prompter glass is transparent, giving the impression that the presenter is speaking
fluently and professionally without any assistance. From the presenter perspective, the glass displays a mirror image of the pre-prepared speech from the LCD monitor at the base of the
stand.
The height of the stand and the angle of the prompting glass are fully adjustable to match the eye-line of the presenter.
Each package includes all the hardware you need for one conference
system (QPro or QMaster/QBox software to be purchased separately), though the executive speech prompters are often used in pairs, positioned on either side of a podium, providing a continuously
visible script to the presenter as they scan the audience.
Specifications
Monitor
Size: 17” (432 mm)
Reading Range: 6 m (20 ft)
Brightness: 420 Nits
Aspect Ratio: 4:3
Contrast Ratio: 500:1
Resolution: 720 x 400
Image Reverse: Yes
Video Inputs: BNC (Composite), VGA (by request)
Compliance: CE, FCC, ROHS
Conference Stand
Stand Height: 86" (220cm) max; 56" (142cm) min
Stand Weight: 2.2 kgs (5 lb) excluding monitor
Included in the package
•17” LCD prompter monitor with BNC connector (VGA by request)
•Professional Manual Conference stand, glass holder and
base
•High quality conference prompter glass (70:30), designed to produce the clearest mirror image
•25m composite cable
•Quick installation guide and detailed electronic user
manual
•Full warranties – 1 years for prompter monitor; 3 years for prompter hardware
|
