| Product Code |
Type |
Place Your Order |
| OCU-PSP17MWAPP |
Professional Series 17" with Medium Wide Angle Hood and Pro Plate |
 |
| OCU-PSP17FHPP |
Professional Series 17" with Folding Hood and Pro Plate |
|
| ESP-MAN/PSP17 |
Manual Conference Stand, Glass and Professional Series 17" Monitor |
|
| MON-PSP/17 |
Professional Series 17" Monitor Only for On-Camera Units |
|
| MON-PSP/17/ESP |
Professional Series 17" Monitor Only for Manual Conference Stand |
|
| MON-PSP17/WARRANTY |
Extended warranty for PSP17 Monitor - 3 year warranty |
|
|

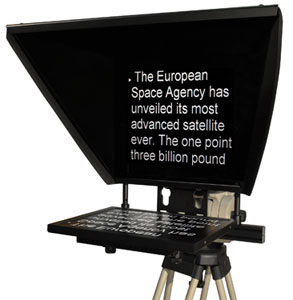

The PSP17 is our most versatile Professional Series teleprompter and has been designed for professional studio
and outside broadcast applications
• Clear and crisp prompting image (400 Nits) recommended for
all but the most extreme sunlight or studio lighting

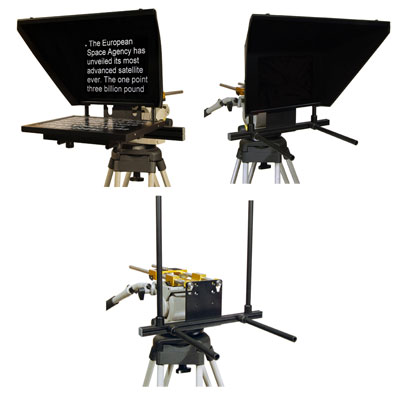

• Slimline and lightweight 17" teleprompter can be mounted to a pedestal using rods or to any pedestal/ tripod using our
versatile Pro Plate which slides backwards and forwards to accommodate any size of camera (DV or ENG)
• The PSP 17 comes with a robust, lightweight and collapsible
medium wide-angle hood - the hood has a greater range of vertical movement than any other prompter on the market to enable you to
shoot through the centre of the glass without needing to raise the camera.
• The PSP 17 is custom-made and includes drive card technology to produce a smoother scroll, whilst image reverse on
the monitor ensures that the software doesn't need to work so hard, providing a smoother scroll for the operator
Specifications
Hardware
Size: 17” (432 mm)
Reading Range: 6 m (20 ft)
Brightness: 420 Nits
Aspect Ratio: 4:3
Contrast Ratio: 500:1
Resolution: 720 x 400
Image Reverse: Yes
Tally Light & Sensor Ready: No
Video Inputs: BNC (Composite), VGA
Weight: 10.5 kgs (20 lbs)
Compliance: CE, FCC, ROHS
Included in the package
• Standard Package (PSP17MWAGP):PSP17 Monitor, Medium Wide Angle hood, bracket and glass, Pro Plate, 25m composite cable (software and hand
controls not included). Optional Large Wide Angle hood for large studio box lenses.
• Lightweight and collapsible medium wide-angle hood and bracket system to accomodate all cameras and lens types without the
need for a riser
• Versatile camera mounting plate (Pro Plate) which slides back and forth to enable use of any size camera (additional camera plate available to provide extra stability with ENG style
cameras)
• Broadcast quality prompter glass (70:30), designed to produce the clearest mirror image and the optimal light to the
camera
• 25m composite cable
• Quick installation guide and detailed electronic user manual
• Full warranties – 1 year for prompter monitor; 3
years for prompter hardware
|
|
|
|
