DPA RWK4017C Rycote Windshield Kit for 4017C
|
|
Product Code: RWK4017C
 |
DPA Microphones has joined forces with Rycote�
to develop a Windshield Kit Solution for DPA 4017C Compact Shotgun. The strong
suspension and windshield solution has been designed specifically to take the
DPA 4017C compact shotgun mic�s compact size and lightweight into consideration.
Special soft lyres are selected to optimize vibration isolation.
This kit together with the DPA 4017C provides everything an outside broadcaster,
journalist or location film maker could need for clear, directional sound,
regardless of the weather and environmental conditions.

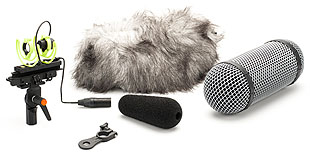

Included in the box:
� Rycote� Suspension with the Rycote� Windshield
� DPA XLR cable
� Rycote� fur windjammer
� Rycote� XLR holder
� Rycote� brush |
| Directional pattern: |
Supercardioid,
lobe-shaped |
| Principle of operation: |
Pressure gradient, with
interference tube |
| Cartridge Type: |
Pre-polarized
condenser |
| Frequency range: |
20 Hz to 20
kHz |
| Frequency range, ± 2
dB: |
40 Hz - 18 kHz with
typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ± 2 dB at 1
kHz: |
19 mV/Pa; -34.4 dB
re. 1 V/Pa |
| Equivalent noise level,
A-weighted: |
Typ. 13 dB(A) re. 20
µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R
BS.468-4: |
Typ. 25 dB (max. 26
dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1
Pa (94 dB SPL): |
Typ. 80 dB(A) |
| Total Harmonic Distortion (THD) at 1
kHz: |
< 1 % up to 133 dB SPL peak |
| Dynamic range: |
Typ. 119 dB |
| Max. SPL, peak before
clipping: |
146 dB |
| Output impedance: |
100
ohm |
| Minimum load
impedance: |
2 kΩ |
| Cable drive
capability: |
100 m (328
ft) |
| Output balance principle: |
Impedance balancing
with Active Drive |
| Common Mode Rejection Ratio
(CMRR): |
> 50
dB |
| Power supply (for full
specifications): |
48 V Phantom power
(± 4 V) |
| Current consumption: |
2.8
mA |
| Color: |
Matte
black |
| Weight: |
70 g (2.5 oz) |
| Diameter: |
19 mm (0.75
in) |
| Capsule diameter: |
19 mm (0.75
in) |
| Output voltage, RMS: |
4.5
V |
| Microphone Length: |
154 mm (6.1
in) |
| Polarity: |
+V at Pin 2 for
positive sound pressure |
| Connector: |
XLR-3M. Pin 1: shield,
Pin 2: signal + phase, Pin 3: - phase |
|
Relative Humidity
(RH): |
Up to
90% |
| Temperature range: |
-40 °C to 45
°C (-40 °F to 113 °F) |
|
|
|
|
|
