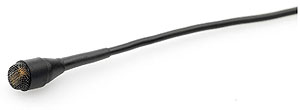

| DPA d:screet™
4063 Omnidirectional Microphone, Lo-Sens &
DC |
|
|
|
SC4063BM |
|
Miniature Omnidirectional Microphone,
LoSens & DC, Black |
 |
|
|
SC4063FM |
|
Miniature Omnidirectional Microphone,
LoSens & DC, Beige |
|
|
|
SC4063WM |
|
Miniature Omnidirectional Microphone,
LoSens & DC, White |
|
|
The New d:screet™ 4063
Miniature Microphones are the versatile workhorses that adapts to
your needs. With eminent sound quality, a large range of
accessories, and adapters available for all pro wireless systems,
the d:screet Miniature Mics are the obvious choice for any
application requiring a big sound and a small footprint.
Originally designed for use with wireless systems in theater,
television and close-miked instrument applications, the
d:screet™ 4063 Miniature Omnidirectional Microphone is highly
unobtrusive. Because of it's small size, these tiny condensers
exhibit an exceedingly accurate omnidirectional pattern and
therefore do not need to be aimed directly at the sound source to
achieve quality pickup.
d:screet™ 4063 is acoustically identical to the 4060, but the
FET preamp in the input stage is designed for working with the
lower supply voltage.
The New d:screet™ 4063 Miniature Omnidirectional Microphones
are available in four colors: black, brown, beige and
white. |
•
Extremely rugged and reliable
• Exceptional audio quality with low noise and high
sensitivity
• Adapts to all pro wireless systems
• Large selection of accessories
Industry leading sound quality
With very low noise and an extremely high sensitivity, the
d:screet™ Miniature Mics offer the most clear, transparent,
and natural sound available on the miniature mic market. The mics
are capable of handling up to 138 dB peak before clipping, and with
a linear response and low distortion and an extremely large dynamic
range, they sound great no matter the application.
A durable package
The d:screet™ 4063 Miniature
Mics are designed to withstand the toughest of conditions. DPA's
unique Double Vent Protection System allows for a great resistance
to humidity and sweat. DPA d:screet Miniature Omnidirectional Mics
design features a reinforced cable relief which is built to
withstand the constant twists, bends, and pulls that are part of
the everyday use. With a gold treated diaphragm and microphone
housing plus a kevlar reinforced cable, the d:screets are made to
endure.
The d:screet 4063 Miniature Omnidirectional Microphones are the
reliable workhorse you can count on.
Flexibility and wireless adaptability
The d:screet™ Miniature Microphones are the versatile
workhorses that adapts to your needs. With eminent sound quality, a
large range of accessories, and adapters available for all pro
wireless systems, the d:screet Miniature Mics are the obvious
choice for any application requiring a big sound and a small
footprint.
The d:screet™ Miniature Microphones and accessories allow for
a broad range of applications. Whether reproducing the voice or an
instrument in either a film, theater, television, or other
close-miking settings, the mics will not disappoint.
Related microphones
d:screet™ 4060, 4061 and 4063 are acoustically identical to
the 4063 but have different SPL handling or sensitivity.
The original d:screet™ 4063 Miniature Mics without the
reinforced cable relief are still available upon
request. |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge
type: |
Pre-polarized condenser element with vertical
diaphragm |
| Frequency range,
± 2 dB: |
Soft boost grid: 20 Hz – 20 kHz, 3 dB soft
boost at 8 – 20 kHz.
High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12
kHz. |
| Sensitivity,
nominal, ±3 dB at 1 kHz: |
6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise
level A-weighted: |
Typ. 26 dB(A) re. 20 µPa (max. 28
dB(A)) |
| Equiv. noise level
ITU-R BS.468-4: |
Typ. 38 dB (max. 40 dB) |
| S/N ratio, re. 1
kHz at 1 Pa (94 dB SPL): |
68 dB(A) |
| Total harmonic
distortion (THD): |
<1% THD up to 123 dB SPL peak; < 1 % THD
up to 120 dB SPL RMS sine |
| Dynamic
range: |
Typ. 97 dB |
| Max. SPL, peak
before clipping: |
138 dB |
| Output
impedance: |
30-40 Ohm |
| Cable drive
capability: |
Up to 300 m (984 ft) |
| Polarity: |
Positively increasing sound pressure produces
positive going voltage on MicroDot pin |
| Power
supply: |
For wireless For wireless systems: Min. 5 V
– max. 50 V through DPA adapter. With
DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full
performance. |
| Color: |
Black, beige, white |
| Connector: |
MicroDot |
| Weight: |
7.5 g (0.26 oz) incl. cable and MicroDot
connector |
| Microphone
diameter: |
5.4 mm (0.21 in) |
| Cable
length: |
1.8 m (5.9 ft) |
| Microphone
length: |
max 12.7 mm (0.5 in) |
| Cable
diameter: |
1.6 mm (0.06 in) |
| Operating
temperature range: |
-40 °C to 45 °C (-40 °F to 113
°F) |
| Relative Humidity
(RH): |
Up to
90% |
|
| |
|
|
|
|
