4051/52/53 Compact
Omnidirectional
|
| |
Product
Code:40515253
|
Model:4051/52/53
Other Microphones -
Omnidirectional
The DPA Compact omnidirectional
phantom powered (P48) condenser microphones use the same type of
cartridge as the famous DPA 4006, but is preamplified using a
built-in ultra small thick-film mounted FET preamplifier, which
enables the cartridge to be mounted on a extremely compact
microphone housing.
|
|
| |
|
|
| |
|
| |
|
4051/52/53 Compact
Omnidirectional
-
great for instrument
miking or invisible installations in concert halls
-
obvious choice when
high definition audio is paramount
-
comes in three
variants: with rear cable, side cable or connector
The DPA Compact
omnidirectional phantom powered (P48) condenser microphones use the
same type of cartridge as the famous DPA 4006, but is preamplified
using a built-in ultra small thick-film mounted FET preamplifier,
which enables the cartridge to be mounted on a extremely compact
microphone housing.
The linear on-axis frequency response from 20 Hz to 20 kHz (±2
dB) together with the ultra-small design makes the compact omni the
perfect choice for all kinds of on-camera or on-stage use where
high definition audio is paramount.

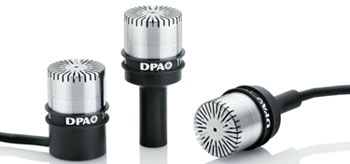

Three variants
The 4051
has its cable mounted at 90° to
the microphone axis, which mechanically is perfect for situations
where the microphone needs to be mounted directly on the musical
instrument or suspended to record an audience.
The 4052
has its cable mounted behind the
microphone axis for situations where the microphone needs to be
suspended from its own cable.
The 4053
has a standard LEMO connector for
simple and safe mounting and removal of the microphone capsule but
also for use together with the elegant and flexible Flamingo Series
floor stands. The microphone is supplied with a 3 m cable LEMO to
XLR.
Both the 4052 and the 4053 Compact Omnis are extremely popular as
A-B Stereo pairs in concert halls where the beautiful architecture
has to go hand in hand with quality recordings.
|
|
General
Specifications |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge type: |
16 mm (0.6 in) pre-polarised
condenser |
| Frequency
range,
± 2 dB: |
On-axis: 20 Hz - 20
kHz |
| Sensitivity, nominal, ±2
dB: |
30 mV/Pa; -30 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 15 dB(A) re. 20 µPa
(max. 17 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 27 dB (max. 29 dB) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
79 dB(A) |
| Total harmonic distortion
(THD): |
<0.5 % THD up to 125 dB SPL peak, <1 % THD
up to 131 dB SPL peak |
| Dynamic
range: |
Typ. 116 dB |
| Output impedance: |
<300
ohm |
| Max. SPL,
peak before clipping: |
135 dB |
| Cable drive
capability: |
Up to 100 m (328 ft) after XLR
connector |
| Current
consumption: |
2.6 mA |
| Connector: |
3-pin XLR-M (Standard P48) |
| Weight: |
22 g (0.78 oz) (without
cable) |
| Microphone Length: |
25 mm (0.98 in) |
| Capsule
diameter: |
24 mm (0.94
in) |
| Cable Length: |
3 m (9.8 ft) |
| Operating temperature
range: |
-40 to +55° C (-40 to
131° F) |
| Power supply: |
48 V Phantom power |
|
| |
|
|
|
|
|
