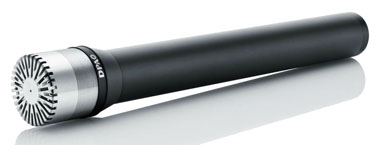

4041-S Large
Diaphragm Microphone, Solid State, 130 V
|
| |
Product
Code:4041S
|
Model:4041S
Other Microphones -
Omnidirectional
The 4041-S is an omnidirectional
microphone that uses the Large Diaphragm Capsule MMC4041 with the
totally transparent MMP4000-S Solid State
Preamplifier.
|
|
| |
|
|
| |
|
| |
|
4041-S Large
Diaphragm Microphone, Solid State, 130 V
The 4041-S is an
omnidirectional microphone that uses the Large Diaphragm Capsule
MMC4041 with the totally transparent MMP4000-S Solid State
Preamplifier.
The cartridge MMC4041 can be unscrewed from the preamplifier which
allows for the exchange of the preamplifier module.
The frequency response from 10 Hz to 20 kHz with a 4-6 dB soft
boost around 8 kHz matches the response of the highly acclaimed
Type 4040 Hybrid Microphone.
The 4041-S is powered via the standard HMA5000 High-Voltage
Microphone Amplifier (not included with the 4041-S), a microphone
system that offers a totally transparent audio path with an
exceptionally low noise floor of maximum 7 dB(A) and a SPL handling
capability of 144 dB SPL peak.
|
|
General
Specifications |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge type: |
24 mm (1 in) condenser w. stainless steel
diaphragm |
| Frequency
range,
± 2 dB: |
10 Hz - 20 kHz with 4 - 6 dB
soft boost at 8 kHz |
| Sensitivity, nominal, ±2
dB: |
90 mV/Pa;-21 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Max. 7 dB(A) re. 20
µPa |
| Equiv. noise level ITU-R
BS.468-4: |
Max. 19 dB |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
87 dB |
| Total harmonic distortion
(THD): |
< 1% THD up to 126 dB SPL
peak |
| Dynamic
range: |
Typ. 119 dB |
| Output impedance: |
Matches HMA5000 input |
| Max. SPL,
peak before clipping: |
144 dB |
| Cable drive
capability: |
From microphone to HMA5000: Up to 20 m (66 ft).
From Hma5000: Up to 300 m (984 ft) |
| Power
supply: |
Via HMA5000 |
| Connector: |
7-pin modified XLR-M (High
Voltage) |
| Weight: |
190 g (6.7
oz) |
| Length: |
170 mm (6.7 in) |
|
| |
|
|
|
|
|
