4091 Omni Mic, Low
Sens, P48
|
| |
Product
Code:4091omni
|
Model:4091
Live Instrument
Microphone

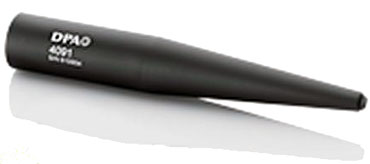

The DPA 4091 is a high quality
omnidirectional condenser microphone
|
|
| |
|
|
| |
|
| |
|
4091 Omni Mic, Low
Sens, P48
The DPA 4091 is a high
quality omnidirectional condenser microphone. Due to its uniquely
natural and open sound, the 4091 is suitable for instrument miking
applications in the studio or on the stage.
The 144 dB SPL handling means it can meet just about any challenge
including miking an electric guitar amp. An excellent microphone
for percussion instruments, the 4091 is also an ideal choice for
wind and string instruments. Due to their remarkably linear
frequency response in the 20 Hz to 20 kHz range, sound system
engineers can also use these mics for sound system alignment,
testing and tuning.
The rugged and compact design features a 5.4 mm diameter
pre-polarized condenser capsule in a tapered body measuring just 12
cm (4.76 in).
|
|
General
Specifications |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge type: |
Pre-polarized condenser |
| Frequency
range, ± 2 dB: |
20 Hz – 20
kHz |
| Sensitivity, nominal, ±3
dB at 1 kHz:: |
6 mV/Pa; -44.5 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 26 dB(A) re. 20 µPa
(max. 28 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 38 dB (max. 40 dB) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
68 dB(A) |
| Total harmonic distortion
(THD): |
<1% THD up to 123 dB SPL
peak |
| Dynamic
range: |
Typ. 97 dB |
| Max. SPL, peak before
clipping: |
144 dB |
| Output
impedance: |
< 40 Ohm |
| Cable drive
capability: |
Up to 300 m (984
ft) |
| Output
balance principle: |
Impedance
balanced |
| Common Mode Rejection Ratio
(CMRR): |
> 40 dB |
| Polarity: |
Positively increasing sound
pressure produces positive going voltage at pin
2 |
| Power supply: |
48 V Phantom power ± 4 V |
| Current
consumption: |
2 mA |
| Connector: |
3-pin XLR-M |
| Color: |
Black |
|
Weight: |
38 g (1.34 oz) |
| Microphone
diameter: |
19 mm; at
tip: 6.7 mm (0.75 in; at tip: 0.26 in) |
|
Capsule diameter: |
5.4 mm (0.21
in) |
| Microphone length: |
122 mm (4.8
in) |
| Temperature
range: |
-10 to 45°C (14 to
113°F) |
| Relative
humidity (RH): |
Up to 90
% |
|
| |
|
|
|
|
|
