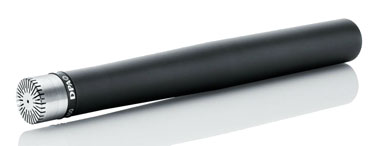

4006-TL Omni
Microphone, P48, Transformerless
|
|
Product
Code:4006TL
|
Model:4006-TL Other Microphones -
Omnidirectional
The 4004 is an omnidirectional
hi-voltage (130 V) close miking specialist with an extended on-axis
frequency response from 10 Hz to 40 kHz (±2
dB).
|
|
|
|
|
|
|
|
4006-TL Omni Microphone, P48,
Transformerless
-
detailed and natural
reproduction
-
high sensitivity and
low noise-floor
-
excellent for concert
halls and spot miking for acoustical instruments
DPA 4006 is one of the
most popular types in the DPA microphone range and is a worldwide
reference thanks to its precise, detailed and natural reproduction.
For more than 20 years it has impressed studio owners and
broadcasters as well as musicians and engineers thanks to its
transparent sound quality. It is one of the most sought after
studio microphones in the industry - and the one that gives you the
most value for your money.
In striving to achieve an even cleaner sound, the 4006-TL is
equipped with a state-of-the-art transformerless preamplifier and
is powered via a standard 48 V Phantom Power supply. This design
increases the sensitivity and provides an extended low-frequency
handling capability (15 Hz to 20 kHz ±2 dB). All components in
this construction are very carefully selected to fulfil the demand
for optimal neutrality, accuracy and extremely low distortion even
at very high sound pressure levels and at complex passages in the
music.
The applications of 4006-TL are numerous: AB stereo pair for
symphonic concert hall recordings, close mic on instruments such as
grand piano, guitar, double bass, percussion and speech/vocals,
just to mention a few examples where a 4006-TL will give more
detail and more open resolution.
With the acoustic modification accessories it is possible to gain 7
different frequency responses and directional characteristics with
just one 4006-TL. You simply change a grid or mount an element over
the capsule and it will influence the sound field acoustically
without any phase shift, noise or distortion, that any electrical
filter will introduce.
4006-TL is a product for sound engineers with demands for high
quality. The precise reproduction, total transparency and
natural-sounding clarity of this microphone will provide you with a
lifetime of satisfying listening.
If you have a 4006, you can upgrade to 4006-TL. The upgrade
includes a factory-based retrofitting to the DPA 4006-TL with
transformerless preamplifier, close-miking grid, DPA 4006-TL type
ring, calibration chart and new mic case.
|
General
Specifications |
Directional
characteristics: |
Omnidirectional |
Principle of
operation: |
Pressure |
Cartridge type: |
16 mm (0.63 in) pre-polarised
condenser |
Frequency
range,
± 2 dB: |
15 Hz - 20
kHz |
Sensitivity, nominal, ±2
dB: |
35 mV/Pa; -29 dB re. 1 V/Pa |
Equivalent
noise level A-weighted: |
Typ. 15 dB(A) re. 20 µPa
(max. 17 dB(A)) |
Equiv. noise level ITU-R
BS.468-4: |
Typ. 27 dB (max. 29 dB) |
S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
79 dB |
Total harmonic distortion
(THD): |
<0.5% THD up to 129 dB SPL peak, <1% THD
up to 135 dB SPL peak |
Dynamic
range: |
Typ. 120 dB |
Output impedance: |
<200 ohm |
Max. SPL,
peak before clipping: |
143 dB |
Cable drive
capability: |
Up to 100 m (328 ft) |
Power
supply: |
Phantom P48 |
Connector: |
3-pin XLR-M (Standard P48) |
Weight: |
150 g (5.29
oz) |
Current
consumption: |
2.60 mA |
Capsule
diameter: |
16 mm (0.63
in) |
Length: |
165 mm (6.5 in) |
Operating
temperature range: |
-40 to +70° C (-40 to
+158° F) |
|
|
|
|
|
|
|
