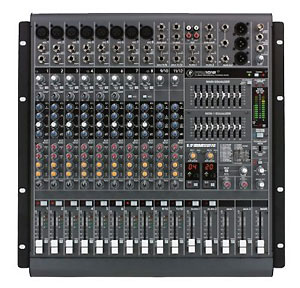

Mackie
PPM1012 12-channel Powered Desktop Mixer
(1600W)
Featuring 800W + 800W
peak Class-D, Fast Recovery™ power
amplifiers, a full eight mono mic/line
channels each with 3-band Perkins EQ and
sweepable mid and two stereo channels each
with 4-band Perkins EQ, the Mackie PPM1012
is the flagship mixer of the Mackie PPM
series.
The Mackie PPM1012 is
equipped with two 32-bit RMFX+™ processors,
each featuring 24 effects with tap delay,
dual 9-band graphic EQ (one for mains, one
for monitors) and dedicated in-line
compressors on the first six channels. Each
mono channel has a premium Mackie mic
preamp, an input Gain control with 50 dB of
gain, a 100 Hz Low Cut filter, two Aux/Mon
sends and two Aux/FX sends, Pan, Mute, Solo,
a 60mm fader and a Channel Insert jack for
connecting an external processor.
There are built-in DIs on channels seven and
eight for direct connection of guitars or
bass, a 1/4-inch stereo footswitch jack for
muting effects and a switchable subwoofer
output with variable low-pass frequency.
Other features include +48V phantom
power, a stereo tape input and output, a
1/4-inch stereo headphone jack, stereo
12-segment LED meters, BNC lamp socket and
XLR and TRS stereo (and mono) output jacks.
Despite its large channel count, the
Mackie PPM1012 is ultra-light and
rack-mountable. Plus, it’s a Mackie which
means it is “Built-Like-A-Tank” and will
survive years of abuse.
APPLICATIONS:
Live sound mixing,
houses of worship, clubs, gymnasiums,
banquet halls, conference rooms, boardrooms,
multitrack studio and field recording, video
post-production, multimedia applications,
broadcast, and many, many more.
|
