UVW-1400AP

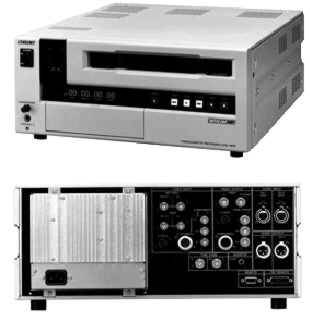

UVW-1400AP Betacam SP Recorder PAL
Discontinued ModelPvw2800p

• Outstanding picture quality, thanks to Betacam SP format
• More than 100 minutes of recording/playback time using L-size metal Betacam SP cassettes
• Two longitudinal audio channel with the Dolby C-type Noise Reduction system shown in unique bargraph indicators
• Dedicated longitudinal time code track
• Built-in Time Base Stabilizer with advanced high quality digital dropout compensation
• Built-in EBU time code (LTC/User-bit) generator and reader
• 25-pin remote control interface complied with RS-232C interface for external computer operation
• Y/R-Y/B-Y component signal inputs and outputs via BNCconnectors are switchable to RGB input/output connector
• S-video (Y/C separate) input/output connectors
• Foot switch control capability
• Trigger remote out for video printers (stereo mini jack)
• Back space editing for smooth transitions between scenes with optional remote controller
• High speed picture search provides recognizable colour picture at up to 5 times normal speed in forward and reverse (16 times in monochrome)
• Built-in character generator to monitor display information such as VTR status, time code, self-diagnostic messages, setup menu,and so on
• Auto repeat function
• Initial setup menu to preset various detailed operational parameters
• Digitalhours meter
• Built-in self diagnostics with detailedwarning messages
• Compact and lightweight (4 unitshigh, approx. 19 kg/41 lb 14 oz), 19-inch rack mountable and low power consumption (85W)

Optional Accessories
RMM-130 Rack Mount Kit
FS-20 Foot switch
SVRM-100A Remote Control Unit
SYC Cables 4-pin/4-pin Cable
BVX-10P Component Color Corrector
