Clear-com TWC-703 2-Channel TW Cable Adapter
Adapt Mode: Dual Channel 3-pin TW Line
Clear-com TWC-703 combines two single channels from
a Clear-Com partyline system to a TW line, allowing dual channel TW segment
to be added to any Clear-Com partyline system. TW connectivity provides the
system with the simplicity of standard 3-pin XLR cabling when using TW
compatible user stations, such as the RS-703 beltpack. TWC-703 seamlessly
converts partyline audio and call signaling between Clear-Com and TW
partyline segments while passing through Clear-Com termination and power.
This adapter provides an automatically managed power protection for the TW
segment to protect against shorts and overload conditions.
Power Mode: Optionally Augments System Power
TWC-703 can inject power to the TW line using the
optional PSU-EXT-003 power supply*. Using the unit’s optional DC power
input, the TWC-703 can relieve the task of powering the TW line off the
Clear-Com Power Supply or Main Station, enabling creation of larger systems
with minimal expense and effort**.
Standalone Mode: Smallest Dual Channel
Intercom
Powered with the optional PSU-EXT-003 power supply*
the TWC-703 can be used as a
standalone TW Power Supply. In this mode,
the TWC-703 automatically engages termination for the TW output and can
power up to (12) RS-703 beltpacks or their
equivalent.

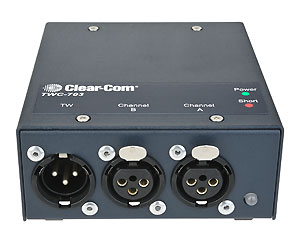

• Front Panel Connectors
(2) Intercom in XLR3F
(1) TW out XLR3M
(1) Power / Overload Indicator
•
Rear Panel Controls & Indicators
(1) DC Power Connector 2.1mm
Co-axial
• Power Requirements
Input
Voltage: 20-30V DC
Input Current (Idle): 65mA
Input Current (Max):
550mA
TW Output Current (Max): 550mA
• Environmental
32˚ to 122˚F (0˚ to 50˚C)
• Dimensions
4 x
2 x 5in (WxHxD)
(101 x 51 x 127mm)
• Weight
1.1lbs (0.503kg
