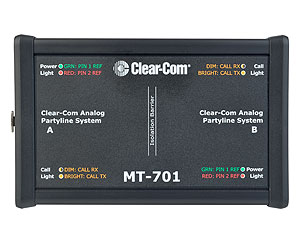

Clear-com MT701 Isolation Box

Clear-com MT701 Isolation Box

Clear-com MT-701 is an isolation box that is used to reduce hum in Clear-Com Encore Partyline products when multiple grounds are present. The MT-701 can also be used to bridge two partyline systems together.

• Audio
Pin 2 Impedance: >5000 Ohms
Max Level: +2 dBu
Distortion: <0.2% THD (200Hz – 10 KHz, -10 dBu)
Frequency Response: 100 KHz – 10 KHz, +2 dBu
Nominal Input Level: -18 dBu (Clear-Com)

• Power
Power Consumption: <5 mA

• Environmental
32°F - +122°F (0°C - +50°C)

• Dimensions
1.8 x 3.2 x 5 in (HxWxD)
(46 x 81 x 126 mm)

• Weight
9.6 oz (0.27 kg)
