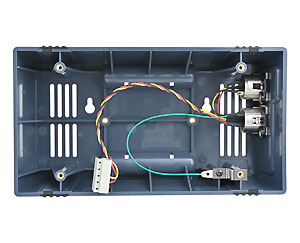

Clear-com U-Box KB speaker station Enclosure
Clear-com U-Box is a highly versatile, robust
enclosure to convert any Clear-Com KB 4-Gang sized speaker station into a
desktop, shelf or wall mount unit for portable or permanent installation.
Features:
•
Enclosure for KB speaker station
• Permanently installed
or portable
• Integrated handles
•
Vertical or angled KB installation
• Desktop or wall
mount
• VESA 75 mounting option
•
Rugged enclosure
• Available wired for single or
dual-channel partyline and 4-wire
• Connectors
U-Box-X3 XLR Partyline: 3-pin XLR-M/F
U-Box-X6 XLR Partyline: “Switchcraft-style”* 6-pin XLR-M/F
U-Box-RJ45
Four-Wire: etherCON RJ45
Input Power Connector: DC 2.1mm Co-axial
• Environmental
32° - 158°F (0 - 70°C)
•
Mounting
U-Box Keyholes Center-to-Center: 4.0in (101.6mm)
Keyhole Diameter: 0.318-0.159in (8.08-4.04mm)
VESA Sockets
Center-to-Center: 2.95in (75mm)
VESA Thread Type: M4x10
Mounting
Bracket Keyholes Center-to-Center: 5.9in (149.9mm)
• Dimensions
U-Box: 4.5 x 8.2 x 2.8in (HxWxD)
(113.79
x 208.79 x 70.23mm)
U-Box in Mounting Bracket: 5.4 x 8.3 x 6.1in
(HxWxD)
(136.19 x 209.55 x 154.37mm)
Weight
U-Box: 0.71lbs (0.32kg)
U-Box with Mounting Bracket: 0.90lbs (0.41kg)
U-Box with KB Speaker Station: 1.97lbs (0.89kg)
