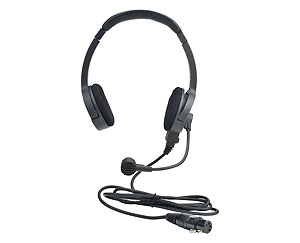

Clear-com CC-220 Double-ear Lightweight headset with cardioid dynamic microphones

Clear-Com CC-220 (Double-ear) premium light-weight headsets feature high-performance headphones and cardioid dynamic microphones that provide high-quality audio.

Operation

The CC-220 headsets can be easily adjusted to accommodate the preference of any user. The microphone boom has a 300° rotation to allow the microphone to be worn on the left or right side of the head. Users can make the headset larger or smaller by using the slide adjusts on either side of the headband. Cushioned with super-soft leatherette or foam padding, the headphones sit on the ear to provide a comfortable fit for users. A rotating, flexible gooseneck is included for optimal positioning.

Integrated Mute Switch Operation

The CC-220 headset microphones can be turned on and off by moving the microphone boom. To turn ON the microphone, pull the boom gently downwards (past the 10 o’clock/2 o’clock position). To turn the microphone OFF, push the boom gently upwards (above the 10 o’clock/2 o’clock position).

Interchangeable Cabling

The CC-220 headsets have been designed so that the cabling and connector type can be adapted quickly to the application. Users can order cables with different XLR connector choices and appropriate pin-outs. To change the connector cable in the field, simply disconnect the cable from the headset and exchange the cable with a standard Phillips screwdriver. The same process can be used to repair and replace a damaged cable on the fly.

Headphone
Type:	Closed-back
Driver:	36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response:	20Hz v- 20kHz
Microphone
Element:	Dynamic
Driver:	15mm, neodymium magnet
Polar Pattern:	Cardioid
Frequency Response:	250Hz – 20kHz)
Open Circuit Sensitivity:	-64 dB ±3.5 dB; at 1kHz, typical CC-220: 96 dB ±3 dB (SPL); at 1kHz typical
Power:	Maximum: 500mW
Impedance:	200 ohms ±30%; at 1kHz typical Microphone: 200 ohms ±30%; at 1kHz typicalMicrophone: 200 ohms ±30%; at 1kHz typical
Connector:	Cable: 5ft (1.55m) long with 8-pin connector at headset end; 4-pin Female XLR
Dimensions:	6.7 x 8 x 3.5 in (WxHxD)
Weight	6.8 oz (195g) without 8-pin cable assembly and M3*18mm SCREW
