A versatile high performance range of headsets designed to give excellent
audio quality, comfort and ease of use to suit every need.
Clear-com

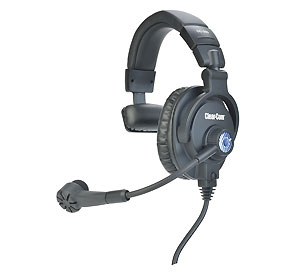

CC-300 (single-ear) headsets feature high performance headphones and cardioid
dynamic microphone that provide high quality audio.
Operation
The CC-300 headsets can be easily adjusted to
accommodate the preference
of any user. The microphone boom has a 300°
rotation to allow the microphone to be worn
on the left or right side of
the head. Users can make the headset larger or smaller by using
the slide
adjusts on either side of the headband. Cushioned with super-soft
leatherette
padding, the headphones sit on the ear to provide a
comfortable fit for users. A rotating,
flexible gooseneck is included for
optimal positioning.
Integrated Mute Switch Operation
The CC-300 headset microphones can be turned on and
off by moving the microphone boom. To turn ON the microphone, pull the boom
gently downwards (past the 10 o’clock/2 o’clock position). To turn the
microphone OFF, push the boom gently upwards (above the 10 o’clock/ 2
o’clock position).
Interchangeable Cabling
The CC-300 headsets have been designed so that the
cabling and connector type can be adapted quickly to the application. Users
can order cables with different XLR connector choices and appropriate
pin-outs. To change the connector cable in the field, simply disconnect the
cable from the headset and exchange the cable with a standard Phillips
screwdriver. The same process can be used to repair and replace a damaged
cable
on the fly.
Headphone
Type: Closed-back
Driver: 40mm diameter,
neodymium magnet,
copper-clad aluminum wire voice coil
Frequency
Response: 40Hz v- 20kHz
Microphone
Element: Dynamic
Polar Pattern: Hyper-cardioid
Frequency Response:
300Hz - 20kHz
Impedance
CC-300: 400Ω ±30%; at 1kHz typical
Microphone: 200Ω ±30%; at 1kHz typical
Connector:
Cable: 5ft (1.55m) long with 8-pin connector at
headset end; 4-pin Female
XLR
Headphone
Sensitivity
CC-300: 102dB ±3dB (SPL) /1mW at 1kHz typical)
Sensitivity
Microphone Open Circuit Sensitivity:
-61dB
±3.5dB (0dB=1V/1Pa, at 1kHz , typical)
Power
Maximum: 500mW
Dimensions
4.8 x 13 x 10.43in (WxHxD)
(122 x 330 x 265mm)
