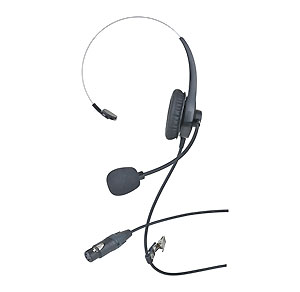

A premium lightweight
headset designed for excellent audio quality,
comfort and ease of use.
The CC-28 premium
lightweight headsets feature high performance
headphones and cardioid dynamic microphones that
provide high quality audio and modern styling.
Integrated Mute Switch
Operation
The CC-28 headset
microphones can be turned on and off by moving the
microphone
boom. To turn ON the microphone, pull
the boom gently downwards (past the 10
o’clock/2
o’clock position). To turn the microphone OFF, push
the boom gently upwards
(above the 10 o’clock/2
o’clock position).
Features:
• Single
closed back, lightweight headset
• Over-the-head
design
• Flexible gooseneck microphone
positioning
• Leatherette earpad
• Dynamic
microphone
• 100Hz to 14kHz earphone frequency
response
• Boom Rotation ON/OFF switch for quick
microphone muting
• Fully serviceable
• Headphone
Type: Closed-back
Driver: 27mm diameter
Frequency response: 100Hz- 14kHz
Sensitivity:
114dB ±3dB SPL@ 1kHz
Impedance: 320 Ω ±20%; at
1kHz typical
Input Power: 100mW
•
Microphone
Element: Dynamic
Polar
Pattern: Cardioid
Frequency Response: 200Hz-10kHz
Sensitivity: -61±3dB at 0dB =1V/1Pa, at 1kHz
Impedance: 200Ω ±20%; at 1kHz typical
•
Connector
XLR 4-pin female
(Neutrik) Clear-Com wiring
Cabling: Screened and
separately shielded
microphone wires, cable not
coiled
Cable length: 5ft (1.5m)
•
Environmental
Temperature: -10° ±3°C
(14° to 37°F)
to 55° ±5°C (131° to 41°F) for 48
hours
Humidity: 40° ±5°C (104° to 41°F) to
90°-95°C
(194° to 203°F) relative humidity for 48
hours
• Dimensions
Dimensions Packaging: 6.3 x 8 x 2.4in (WxHxD)
(160 x 205 x 60mm)
• Weight
3.1oz (88g) without connector
3.5oz (99.2g)
