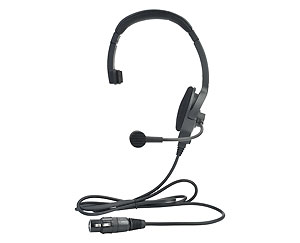

Clear-Com CC-110 (single-ear) premium light-weight
headsets feature high performance headphones and cardioid dynamic microphones
that provide high quality audio.
Operation
The CC-110 headsets can be easily adjusted to
accommodate the preference of any user. The microphone boom has a 300°
rotation to allow the microphone to be worn on the left or right side of the
head. Users can make the headset larger or smaller by using the slide
adjusts on either side of the headband. Cushioned with super-soft
leatherette or foam padding, the headphones sit on the ear to provide a
comfortable fit for users. A rotating, flexible gooseneck is included for
optimal positioning.
Integrated Mute Switch Operation
The CC-110 headset microphones can be turned on and
off by moving the microphone boom. To turn ON the microphone, pull the boom
gently downwards (past the 10 o’clock/2 o’clock position). To turn the
microphone OFF, push the boom gently upwards (above the 10 o’clock/2 o’clock
position).
Interchangeable Cabling
The CC-110 headsets have been designed so that the
cabling and connector type can be adapted quickly to the application. Users
can order cables with different XLR connector choices and appropriate
pin-outs. To change the connector cable in the field, simply disconnect the
cable from the headset and exchange the cable with a standard Phillips
screwdriver. The same process can be used to repair and replace a damaged
cable on the fly.
