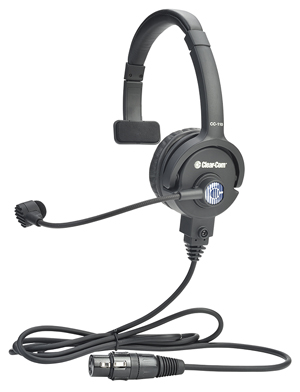

 Clear-Com CC-110 Single ear Premium Light-weight Headset

Clear-Com CC-110 Intercom Headsets
Product Code: CC110
review button
Model Number Description
CC-110-X4 Single-ear 4-pin Female XLR Clear-Com CC-110 Intercom Headsets
CC-110-X5 Single-ear 5-pin Male XLR Clear-Com CC-110 Intercom Headsets
CC-110-X6 Single-ear 6-pin Male XLR (balanced mic) Clear-Com CC-110 Intercom Headsets
CC-110-X7 Single-ear 7-pin Female XLR Clear-Com CC-110 Intercom Headsets
CC-110-Y5 Single-ear 5-pin Female XLR Clear-Com CC-110 Intercom Headsets
CC-110-B6 Single-ear no connector Clear-Com CC-110 Intercom Headsets

Features:
- Single-ear premium light-weight headset
- High quality dynamic cardioid microphone
- 20Hz -20KHz frequency response
- Choice of earpads: leatherette or foam
- Flexible gooseneck microphone positioning
- Boom rotation ON/OFF switch for quick microphone muting
- Interchangable cabling for easy connector change and repair
- Fully serviceable headset
- Rugged design

Specifications of CC 110
Headphone
Type: Closed-back
Driver: 36mm diameter, neodymium magnet, copper-clad aluminum wire voice coil
Frequency Response: 20Hz v- 20kHz

Microphone
Element: Dynamic
Driver: 15mm, neodymium magnet
Polar Pattern: Cardioid
Frequency Response: 250Hz – 20kHz

Sensitivity
Open Circuit Sensitivity: -64 dB ±3.5 dB; at 1kHz, typical
99 dB ±3 dB (SPL); at 1kHz typical

Power
Maximum: 500mW

Impedance
400 ohms ±30%; at 1kHz typical

Connector
Cable: 5ft (1.55m) long with 8-pin connector at
headset end; 4-pin Female XLR

Dimensions
Packaging for CC-110:
6.7 x 8 x 3.5 in (WxHxD)
(170 x 205 x 90 mm)

Weight
5.1 oz (145g) without 8-pin cable assembly and M3*18mm SCREW
