Yamaha 01V96i Digital Mixing Console
Sometimes everything just comes together—and when it does, the new 01v96i is there to capture that perfect moment for you in stunning 96kHz sound.
Since its initial release in 1998, the 01V has been the mixer of choice for a wide variety of applications, ranging from recording and production environments to live sound and installation setups.
The 01V96i represents the next step in the evolution of an industry standard, building on the proven configuration of its predecessors to create a compact digital mixer that meets the needs of an
expanding user base. Now, with 16 in/16 out USB 2.0 audio streaming at an impressive 96kHz, the latest version of Steinberg's Cubase AI, the full suite of Yamaha's acclaimed Virtual Circuitry Modeling
DSP effects and newly improved studio quality head amps, the next generation 01V96i will take every aspect of your mixing and recording to the next level.

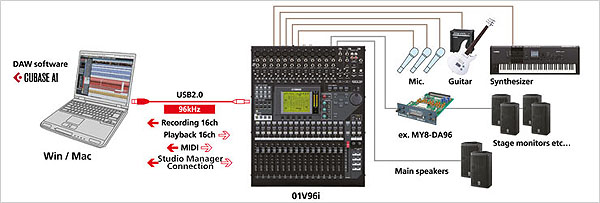

96kHz Multi-track Live Recording with A Single Connection
To meet the increasing demand for multi-track recording and playback in live sound applications, the 01V96i now features USB 2.0 connectivity—allowing you to effectively take your studio
on the road with you. With 16 in/16 out live audio streaming at 96kHz and seamless DAW integration requiring just a single connection, it has never been easier to capture, edit and produce
high quality, professional level recordings. USB connectivity also provides extensive two-way communication of MIDI data allowing you to seamlessly combine the precise physical control of your console
with all the capability of the latest Cubase AI software that comes bundled with the 01V96i.
Full Suite of Yamaha VCM Effects and High Resolution REV-X Reverbs
- Bring Back The Classics -
The Channel Strip consists of 5 models that employ VCM (Virtual Circuitry Modeling) technology to recreate the sound and characteristics of several
classic compression and EQ units from the 70's. Not only do these models faithfully capture the unique saturation of analog circuitry – in part thanks to
precise modeling of the original FET gain reduction, tube/transformer buffer amplifier, VCA and RMS detector circuits – but they have also been fine-tuned by
leading engineers and feature carefully selected parameters in a simple interface that makes it easier than ever to create the ideal sound.
- A Reel Advantage -
The Master Strip employs VCM technology to recreate both the analog circuitry and tape characteristics that shaped the sound of open-reel tape recorders.
Because of their ability to smooth out peak levels and tidy up the response, many high-end recording studios still maintain open-reel recorders such as the
Studer A80 mk I, A80 mk IV and A820, and the Ampex ATR100 and others from the 70's and 80's to be used to provide tape compression at the mastering stage.
Different types of tape – new BASF, old Ampex, etc. – are also selected and used according to the unique sounds they produce. Open Deck provides models of four
machine types: Swiss '70, Swiss '78, Swiss '85, and American '70. You can even combine different record and playback decks for a wider range of variation. You
also have a choice of “old” and “new” tape types, tape speed, bias, and EQ settings that can vary the “focus” of the sound, distortion, and saturation
characteristics. Now you can easily take advantage of top-end analog sound-shaping techniques in real time using the Yamaha 01V96i digital console.
- Phasers on Stun -
Stunning authenticity, that is. Vintage Stomp gives you three distinctly different phasers modeled after the most sought-after stompbox effects units of
the 70's. Yamaha's VCM technology gives these outstanding recreations all the warmth and atmosphere of the original vintage units, and combines it with the
control and processing flexibility that a digital environment affords.
- Bring Your Mix to Life -
These high-resolution reverbs employ the latest "REV-X" algorithms first introduced in Yamaha's SPX2000 Digital Multi Effects Processor. The REV-X
programs feature the richest reverberation and smoothest decay available, based on years of dedicated research and development. REV-X Hall, REV-X Room, and
REV-X Plate programs are provided, with new parameters such as room size and decay envelopes that offer unprecedented definition and finer nuance control.
The REV-X Hall and REV-X Room programs have a very open sound, while REV-X Plate delivers a brighter tonality that is ideal for vocals. All models deliver dense,
warm reverb that does not interfere with the natural timbre of the source.
Powerful Mixing Capacity,Versatility andExpandability
Don't let its compact construction fool you— the 01V96i has tremendous mixing capacity for a console its size, making it extremely versatile and suitable for
a wide range of studio and sound reinforcement applications.
- 40 Input/20 Bus Mixing at 96kHz
With up to 40 simultaneous inputs and 20 buses at 96kHz, the 01V96i delivers large console power in a rack-mount sized package. Offering a main stereo bus,
eight individual mixing buses, two solo buses, and eight auxiliary buses —a total of 20 in all— the 01V96i gives you plenty of signal-routing options to adapt to just about any mixing requirements.
- Comprehensive Connectivity
Right out of the box the 01V96i offers 16 analog channel inputs—12 with improved studio-quality head amps-—and on the digital front, 8-channel optical ADAT,
coaxial 2-track inputs and 16 inputs via USB. Analog outputs include the main stereo output, stereo monitor outputs, a stereo 2-track output, four OMNI
outputs, 12 channel TRS insert points and a headphones output, matched with coaxial 2-track outputs and 8-channel optical ADAT for digital output. When you
need more, Yamaha offers a range of mini-YGDAI expansion cards that can be inserted into the 01V96i’s expansion slot. From traditional analog audio formats
to standard digital audio and dedicated third-party proprietary network protocols, Mini-YGDAI cards make it easy to add I/O in a wide variety of audio and network formats to 01V96i.
- Cascade Link for Ultimate Expandability
When your situation demands a high capacity setup—particularly for live sound reinforcement applications— the "01V96i Cascade Link" allows you to run two
units cascaded giving you up to 80 channels of mixing capability. One simple connection for all the power you would ever need.
The Digital Advantage
- Fast Flexible Patching
- Precision Motor Faders That Do More Than Just Mix
- Intuitive "Selected Channel"
- Layer Switching and Fader Mode
- Versatile Channel Pairing
Born Versatile, Tuned for Live
The 01V has been used in a wide variety of applications due to its exceptional versatility. Highly customizable, the 01V96i can be configured to meet specific demands of various environments and
greatly benefit your operation of the console. In live situations in particular, the console's personalized functions add a familiar touch while streamlining your workflow tremendously.
- Grouping Function
- User Defined Keys for Customized Control of Your Console
- Scene Memory — Instant Recall Is Just A Click Away
- Seamless DAW Integration
Available for MAC and Windows platforms, 01V96i Editor is a total management software package that gives you complete control of all the console's parameters via your computer. Editor provides
comprehensive monitoring as well as real-time display of selected channel status once it is connected to the console and online. Offline you can edit and manage scene data, patch lists, and other
functions for a significant boost in control and work efficiency. If you are using a rental or another installed console, you can easily save your settings to a computer, then load them into the
other console at your convenience. 01V96i Editor also makes an effective tool for safely managing your backups.
|Cubase AI - The Perfect Complement
With Cubase, Steinberg has essentially redefined music production software in their pursuit to provide users with the most advanced, comprehensive DAW software available. The 01V96i comes with the
latest version of Cubase AI to give you a flexible, intuitive platform to realize your full creative potential.
With Cubase Al you get a stripped-down version of the Steinberg Cubase advanced music production system, using the same core technologies and interface that have won this series worldwide
acclaim. Together with the 01V96i, both MAC and Windows PC users will have access to a full system solution with all the tools they need for composing, recording, editing and mixing studio-quality
music whether you're in the studio or not.
||32 Mono + 4 Stereo
|Input channel functions
||Gate, Attenuator, 4-band PEQ, 2x Compressor, Delay, Pan
|Output channel functions
||Attenuator, 4-band PEQ, Compressor, Delay
||4x SPX multi effectors
||+48V DC; ON/OFF per 4ch
||2x Stereo, 2x 2tr in
||24-bit; 128-time over sampling
||Stereo output, Monitor output, 4x Omni output
||24-bit; 128-time over sampling
||ADAT (8-in/8-out), 2tr in/out
|Control and others
||To Host(USB), MIDI, Word clock I/O
||32bit, Accumulator: 58bit
|Sampling frequency rate
||44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
||44.1kHz/88.2kHz (-10%) - 48kHz/96kHz (+6%)
||Less than 1.6ms CH INPUT to STEREO OUT (@SampIing frequency = 48kHz) / Less than 0.8ms CH INPUT to STEREO OUT (@SampIing frequency = 96kHz)
|Total harmonic distortion
||CH INPUT to STEREO OUT: Less than 0.05%, 20Hz to 20kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into
600Ω (@SampIing frequency = 48kHz) / Less than 0.05%, 20Hz to 40kHz @+14dBu into 600Ω / Less than 0.01%, 1kHz @+24dBu into 600Ω (@SampIing frequency = 96kHz)
||CH INPUT to STEREO OUT: 0.5, -1.5dB, 20Hz - 20kHz @+4dBu into 600Ω(@SampIing frequency = 48kHz) / 0.5, -1.5dB, 20Hz
- 40kHz @+4dBu into 600Ω(@SampIing frequency = 96kHz)
||110dB typ. DA Converter (STEREO OUT) / 105dB typ. AD+DA (to STEREO OUT) @fs=48kHz / 105dB typ. AD+DA (to STEREO OUT) @fs=96kHz
|Hum & noise level
||Equivalent input noise
||-128dBu Equivalent Input Noise.
|Residual output noise
||-86dBu residual output noise. STEREO OUT: STEREO OUT off. / -86dBu (90dB S/N) STEREO OUT: STEREO fader at nominal
level and all CH INPUT faders at minimum level. / -64dBu (68dB S/N) STEREO OUT: STEREO fader at nominal level and one CH INPUT fader at nominal level
||-80dB adjacent input channels (CH1-12) / -80dB adjacent input channels (CH13-16) / -80dB input to output
||AC100V, 120V, 220-240V 50/60 Hz
||Fader: 100mm motorized x17
