Roland XS-42H Matrix Switcher up to four HDMI inputs

Product Code: XS-42H

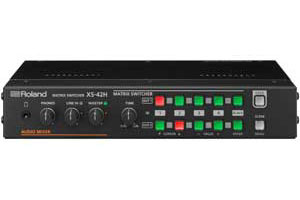

Roland XS-42H
review button

Features
• Switch up to four HDMI inputs to one or two displays
• Run and switch the meeting from a web browser on a tablet, phone or PC (connected to same network)
• Content displays automatically with Auto Input Detection
• Arrange meeting presets for recalling common meeting set-ups with the push of a button

Roland XS-42H Matrix Switcher up to four HDMI inputs


Meet. Share. Repeat.

The Roland XS-42H is the switcher anyone can connect to and immediately start sharing information to one or two screens for effective meetings and huddles. It is easily installed without any AV experience turns any flat panel TV into a meeting room system.


DIY — Huddle without the hassle

Professionally installed huddle space AV systems aren’t cheap — and for smaller companies the cost is often prohibitive. But if you can mount a TV on a wall, then you can install and set up the Roland XS-42H, giving you a huddle space that’ll make everyone’s lives easier.

The XS-42H is small, light and easy to position, and the supplied mounting bracket means it can be located out of sight, but ready for action. You don’t even need to physically press the button to change input sources, as the XS-42H can be controlled from a web browser on your computer, tablet or smartphone.


No more ‘guess the input’

Even when successfully connected to a display, you may not see ‘your’ screen because the correct input isn’t selected. This triggers a cycle of chaos as you scramble for the right input settings, while everyone starts checking their smartphones. The XS-42H’s auto input detection solves this problem by automatically switching to a newly connected device, making the transition to a new presenter incredibly smooth while keeping everyone focused on the meeting.


Connect with confidence

The XS-42H can connect and display a reassuring variety of sources. It achieves this in two ways; EDID and scaling. EDID (or Extended Display Identification Data) tells your PC or tablet the correct resolution to output, so you don’t ever need to get involved. Scaling lets you connect, switch and display between a variety of different sources and resolutions – so no matter what’s going in, it’ll come out fine.


Connect to better speakers for superior sound

Although most TV LED and LCD panels look good, the sound is often an afterthought. The Roland XS-42H includes stereo RCA outputs for connection to external speakers or soundbars, for dramatically superior audio quality. The internal audio mixer of the XS-42H will switch the audio to match the video input, using the audio embedded in the computer’s HDMI signal — no extra audio cables required.


High-end touchscreen operation, without the cost

High-end AV meeting room systems often include a touchscreen interface — usually with a high-end cost. The XS-42H lets you use any inexpensive tablet as a convenient touch controller, via the browser application. Once connected to your company network, simply connect to the XS-42H’s IP address and use the tablet to select presets, switch inputs and control the volume — all without having to leave your seat.

Video
Processing 4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported
Output Connectors HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported
 Formats 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Composition Layer: 1
Transition Black-insert, Mix, Cut
Still Image Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
Audio
Audio Processing Sampling Rate : 24-bit/48 kHz
Input Connectors HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type
Output Connectors HDMI: HDMI type A x 2
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini type
Input Level and Impedance AUDIO INPUT: -10 dBu (Maximum: +8 dBu)
AUDIO INPUT: 15 k ohms
Output Level and Impedance AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms)
AUDIO OUTPUT: 1 k ohm
PHONES : 10 ohms
Formats HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
Processing Mixer: 4 ch x 2 (Delay: Maximum 250 ms, Audio Follow)
Others
External Connectors REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
USB MEMORY: USB A type x 1 (Use for USB Memory)
Functions Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator
Current Draw 2.1 A
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches
Weight 1.2 kg
2 lbs 11 oz
Power Supply AC Adaptor
Power Consumption 25 w
Accessories Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rubber feet (4 pcs.)
Rack mount angle set
