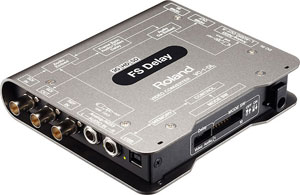

Roland VC-1-DL Bi-directional SDI/HDMI Converter with Delay and Frame Sync

Roland VC-1-DL SDI/HDMI Converter

Roland VC-1-DL Bi-directional SDI/HDMI Converter Built-in Frame Synchronizer

Product Code: VC-1-DL

Roaldn VC-1-DL
review button

Features
• HDMI to SDI Conversion
• SDI to HDMI Conversion
• 3G (Level A&B) /HD/ SD SDI
• HDCP Support
• Built-in Frame Synchronizer
• Audio Delay - up to 9 fields (4.5 frames)
• Video Delay - up to 9 fields (4.5 frames)

Roland VC-1-DL Bi-directional SDI/HDMI Converter

The Roland VC-1-DL Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The Roland VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The Roland VC-1-DL also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The Roland VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The Roland VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

In live production as you add more video components to a signal flow, latency is introduced. The Roland VC-1-DL Converter not only allows bidirectional conversion of SDI/HDMI but it also provides frame sync and delay adjustment of up to 9 fields (4.5 frames) for audio and video independently. This is helpful when keeping various types of cameras in sync as well as ensuring a projector stays in sync with an LED wall. In this way it is an indispensable tool live production, broadcast and recording applications.

Input
SDI Connector BNC type x 1
HDMI Connector Type A (19 pins) x 1
Analog Audio Connector 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
Digital Audio Connector 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector)
Reference Connector BNC type x 1
Reference Signal Format Black Burst, Bi-level, Tri-level
Reference Impedance 75 ohms
Processing Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding
Output
SDI Connector BNC type x 1
HDMI Connector Type A (19 pins ) x 1
Analog Audio Connector 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
Digital Audio Connector 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector)
Input/Output Format
SDI Input Signal Standards SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Input Video Format 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
Audio Format Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Input Video Format 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
HDMI Input Audio Format Linear PCM, 24 bit, 48 kHz, 8 ch *1
SDI Output Signal Standards SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
SDI Output Video Format 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
SDI Output Audio Format Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
HDMI Output Video Format 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
HDMI Output Audio Format Linear PCM, 24 bit, 48 kHz, 8 ch *1
Audio Input/Output
Analog Audio Input Level +4dBu
Analog Audio Maximum Input Level +24dBu
Analog Audio Input Impedance 110 ohms
Analog Audio Output Level +4dBu
Analog Audio Output Impedance 600 ohms
Digital Audio Output Signal Format AES3, 16/24 bits, 32/48 kHz, 2 ch
Digital Audio Output Impedance 110 ohms
Others
USB Connector USB Type B (Hi-Speed USB) x 1
Power Supply DC 9V
Power Consumption 8W
Operation Temperature +0 to + 40 degrees Celsius
Accessories AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
