Features
• Still images can be loaded from a USB flash drive
• Built-in EDID emulator, and HDCP-compliant
• Split Mode allows PinP of up to three inset windows
• Frame synchronizer and scaler on all inputs
• High-quality 4:4:4/10-bit processing at up to WUXGA/1080p
• Switcher Mode allows PinP, key-compositing, and dissolve transitions


Roland XS-1HD Multi-format Matrix Switcher Frame synchronizer and scaler

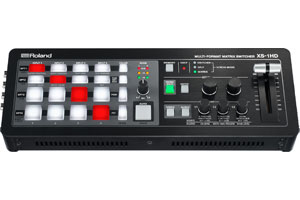

The Roland XS-1HD is ideal for supporting live event productions that involve a variety of video signals. A high quality scaler is provided on each input, allowing for fast setup. At only the width of a 13” laptop computer, the Roland XS-1HD allows real-time operation in even the most space-limited working environments.


CROSS-POINT BUTTONS

Roland XS-1HD buttons select the input channel for each output. The vertical columns correspond to the input, and the horizontal rows correspond to the output. Buttons are lite-up white when a video signal is present.


QUICK EDIT

Roland XS-1HD function lets you adjust the video or audio from the operation panel without need to access the menu. You can control settings such as the position and scaling of the image, the location of the PinP inset windows, and the audio volume.


HDMI INPUT/OUTPUT

Roland XS-1HD HDMI connectors allow video and audio (stereo) to be input and output. A scaler and EDID emulator are built-in for each input, and HDCP is also supported, allowing for even rights-protected content to be switched.


USB MEMORY PORT

Settings can be backed up on a USB flash drive. Still images can also be loaded, and instantly displayed when needed.


AUDIO INPUT/OUTPUT

Line-level stereo input and output are available and can be mixed with audio that is input via HDMI. Roland XS-1HD Audio embedding and de-embedding are supported, along with audio delay to adjust for lip-sync.


REMOTE CONTROL

Serial control is enabled. It is possible to cooperate with other switchers and mixers and control from the outside.


MATRIX MODE

Four input video signals can be individually switched to one of four outputs. Since a scaler is provided for each of the four inputs, you can connect a mix of video devices such as cameras, PCs, media players, Blu-ray discs, or smartphones. You can switch between videos by fading-in/out and can adjust desired transition time using the TIME knob.


SWITCHER MODE

Roland XS-1HD mode lets you use a cross-dissolve to seamlessly transition between sources, or use PinP or key-compositing. A multi-view input preview can be output from HDMI OUT 4 for confirming input sources while operating the unit.*1 If you're not using PinP or key-compositing, you can use an AUX bus to output a separate video signal to a confidence monitor or other destination.
*1 Skip-frame display


SPLIT MODE

Roland XS-1HD mode composites multiple videos into a single screen for output. Up to three small screens can be composited into a background video. The position, size and layering order of the inset screens can be individually set. This is useful when it is required show multiple videos simultaneously, such as when recording e-learning content or presentations.

VIDEO
Processing 4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits
Input Connectors HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported
Output Connectors HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported
Formats 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1)(*2), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Effects Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 2 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
Still Image Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
AUDIO
Sampling Rate 24 bits/48 kHz
Input Connectors HDMI : HDMI type A x 4
AUDIO INPUT : RCA pin type
Output Connectors HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type
Input Level AUDIO INPUT : -10 dBu (Maximum : +8 dBu)
Input Impedance AUDIO INPUT : 15 k ohms
Output Level AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)
Output Impedance AUDIO OUTPUT : 1 k ohm
PHONES : 10 ohms
Formats HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
Processing Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator
OTHERS
External Connectors REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)
Preset Memory 16
*Auto Memory Function
Power Supply AC Adaptor
Current Draw 2.1 A
Power Consumption 25 W
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches
Weight 1.2 kg
2 lbs 11 oz
Accessories Owner's Manual
AC adaptor
Power cord
Notes * 0 dBu = 0.775 Vrms
