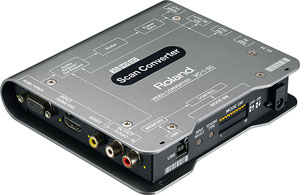

Roland VC-1-SC Up/Down/Cross Scan Converter to/from SDI/HDMI with Frame Sync

Roland VC-1-SC Up/Down/Cross Converter

Roland VC-1-SC Up/Down/Cross Scan Converter Audio Embedding or De-Embedding

Product Code: VC-1-SC

Roaldn VC-1-SC
review button

Features
• 3G (Level A&B) /HD/ SD SDI
• HDMI In/Out
• RGB/Component In
• Composite In
• HDCP Support

Roland VC-1-SC Up/Down/Cross Scan Converter

The Roland VC-1-SC Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The Roland VC-1-SC also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances.

The  Roland VC-1-SC also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources. The Roland VC-1-SC also enables input from analog sources such as RGB and component along with built-in scaler.

The  Roland VC-1-SC is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. Selectable audio embedding or de-embedding lets you route different audio sources to or from video devices.

Input Connectors
SDI Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI Connector: Type A (19 pins) x 1
Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)
RGB/Component Connector: HD DB-15 type x 1
Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals)
Impedance: 75 ohms
Composite Connector: BNC type x 1
Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL))
Impedance: 75 ohms
Analog Audio Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector)
Input Level: -6dBV
Maximum Input Level: +6dBV
Impedance: 22 k ohms
Reference Connector: BNC type x 1
Impedance: 75 ohms
Signal Format: Black Burst, Bi-level, Tri-level
Output Connectors
SDI Connector Connector: BNC type x 2 (One is Combined with SDI In Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
HDMI Connector Connector: Type A (19 pins) x 1
Signal Standards: HDMI HDCP support
Analog Audio Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio In Connector)
Input Level: -6dBV
Maximum Output Level: +6dBV
Impedance: 2.2 k ohms
Formats
SDI Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1920x1080/30PsF/29.97PsF/25PsF/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p (Conforms to SMPTE 296M)
720x480/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
Color Format: 10 bits YCC 4:2:2
Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
*When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
HDMI Video Formats: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i
1280x720/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p
720x480/59.94p/59.94i, 720x576/50p/50i (Conforms to CEA-861-E)
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Color Format: 10 bits YCC 4:2:2, 8 bits YCC 4:4:4, 8 bits RGB 4:4:4
Audio Format: Linear PCM, 24 bits, 48 kHz, 8 ch
RGB/Component Video Formats: 1920x1080/60p/59.94p/50p/60i/59.94i/50i/24PsF/23.98PsF (Conforms to SMPTE 274M)
1280x720/60p/59.94p/50p (Conforms to SMPTE 296M)
720x480/59.94p/59.94i, 720x576/50p/50i
PC Formats: 640x480/60/72/75/85Hz, 800x600/56/60/72/75/85Hz, 1024x768/60/70/75/85Hz, 1280x720/60Hz, 1280x768/60/75/85/Hz, 1360x768/60Hz, 1152x864/75Hz, 1400x900/60/75/85Hz, 1280x960/60/85Hz, 1280x1024/60/75/85Hz, 1400x1050/60/75Hz, 1680x1050/60Hz, 1600x1200/60Hz, 1920x1080/60Hz, 1920x1200/60Hz Reduced blanking (Conforms to VESA DMT Version 1.0 Revision 11)
Composite Video Formats: NTSC, PAL
Processing
Audio Embed/De-embed 2ch
Frame Synchronizer Frame sync is activated when a reference signal is detected. When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.
Resolution Conversion Selectable Full/LetterBox/Crop/Dot-by-Dot Type
Frame Rate Conversion Frame Skip/Repeat Type
Others
USB Connector USB Type B (Hi-Speed USB) x 1
Power Supply DC 9V
Power Consumption 8W
Operation Temperature +0 to + 40 degrees Celsius
Accessories AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
