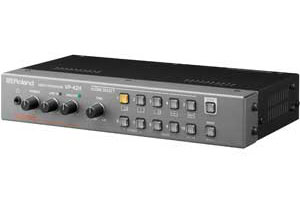

Roland VP-42H Video Processor up to 4 HDMI video sources

Product Code: VP-42H

Roland VP-42H
review button

Features
• Combine up to four HDMI video sources on to a single output
• Simple set-up and remote switching with browser-based network control
• Connect and switch multiple resolutions simultaneously
• Audio management and connection to external audio devices
• Motion Scene Switching for fluid transitions between complex screen sets
• Keyer function for overlays and advanced compositions

Everything you need, on a single screen

The Roland VP-42H Video Processor layers and arranges multiple video sources to a single screen with dynamic transitions for effective and engaging presentations, digital signage and meeting applications.


Maximum effect, minimum effort

The Roland VP-42H goes way beyond typical switchers. You can instantly switch between ‘scenes’ containing preset arrangements of layered sources in customizable inset windows. The VP-42H smoothly transitions between current and next scenes by automatically moving and resizing the windows to their new positions. And highly impressive scene changes that used to take hours to program now happen at the touch of a button.


Simple, solid switching

Not all events require creative display and advanced scene transition capabilities. For simpler scenarios, the Roland VP-42H functions as a true cross-dissolve seamless switcher, with a keyer to create overlays and the ability to display still images via USB drive — perfect for logos and safety slides.


Flexible audio capability

The Roland VP-42H includes stereo RCA outputs for de-embedding audio from connected HDMI sources and outputting it to other devices such as speakers and mixers. Levels for each source can be set by the internal audio mixer, and if the VP-42H is being used as a compositor for recording or streaming, the audio from an external mixer or other sources can be connected to the RCA inputs and embedded into the HDMI output signal.


Fast and convenient browser-based setup

Quickly configure scenes by using the web browser interface for your network-connected VP-42H. Each input’s layer can be scaled, cropped, zoomed and positioned by simply clicking and dragging. So even at a large event, a VP-42H connected to a big display will be up and running in seconds, letting you use a wirelessly connected tablet to set up compositions in no time.


Large event presentations

LED walls and projections make a big impact at corporate events, and the VP-42H can customize the display of the various data sources needed for presentations. With 10bit 4:4:4 video processing for pixel accurate color, the VP-42H ensures that detailed data sources such as spreadsheets are sharp and clear for the audience to read.

And as you’ve got their attention, impress the audience with smooth and dynamic Motion Scene Switching. It makes everything look more exciting — even spreadsheets.


Digital signage processor

Create engaging digital signage with multiple content layers, overlays and motion-based transitions. The VP-42H can automatically switch between scenes, based on a preset interval, for exciting, eye-catching displays. And you can make it all happen from just about anywhere in the world, by connecting remotely and updating the VP-42H via a web browser.


Video production multi-viewer

The Roland VP-42HD is a highly flexible multi-viewer for video production. Most multi-viewers simply provide a quad display but the VP-42H enables custom sizing for each source window, and scenes can be set up for instant access to a variety of multi-view configurations. The VP-42H can also de-embed audio being transported over HDMI, routing the audio to local speakers for improved monitoring.

Video
Processing 4:4:4 (Y/Pb/Pr, RGB)/10 bits, 4:2:2 (Y/Pb/Pr)/10 bits
Input Connectors HDMI: HDMI type A x 4 (HDMI INPUT 1--4)
* HDCP Supported
Output Connectors HDMI: HDMI type A x 2 (HDMI OUTPUT 1--2)
* HDCP Supported
Formats 480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Composition Layer: 4 (Picture in Picture x 4)
*Layer 1 is Picture in Picture with Keyer.
Transition Black-insert, Mix, Cut, Motion
Still Image Internal Memory: 1
Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
Audio
Audio Processing Sampling Rate : 24-bit/48 kHz
Input Connectors HDMI: HDMI type A x 4
AUDIO INPUT: RCA pin type
Output Connectors HDMI: HDMI type A x 2 *2 Output is the same audio.
AUDIO OUTPUT: RCA pin type
PHONES: Stereo mini type
Input Level and Impedance AUDIO INPUT: -10 dBu (Maximum: +8 dBu)
AUDIO INPUT: 15 k ohms
Output Level and Impedance AUDIO OUTPUT: -10 dBu (Maximum : +8 dBu)
PHONES: 72 mW + 72 mW (32 ohms)
AUDIO OUTPUT: 1 k ohm
PHONES : 10 ohms
Formats HDMI: Linear PCM, 24 bits, 48 kHz, 2 ch
Processing Mixer: 4 ch  (Delay: Maximum 250 ms)
Others
External Connectors * REMOTE
RS-232: DB-9 type (Male) x 1
LAN: RJ45 x 1
USB: USB A type x 1 (Use for future expansion)
* USB MEMORY: USB A type x 1 (Use for USB Memory)
Functions Scene Memory: 10
Test Pattern Generator
Test Tone Generator
EDID Emulator
Current Draw 2.1 A
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 242 (W) x 125 (D) x 44 (H) mm
9-9/16 (W) x 4-15/16 (D) x 1-3/4 (H) inches
Weight 1.2 kg
2 lbs 11 oz
Power Supply AC Adaptor
Power Consumption 25 w
Accessories Owner’s Manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
Rubber feet (4 pcs.)
Rack mount angle set
