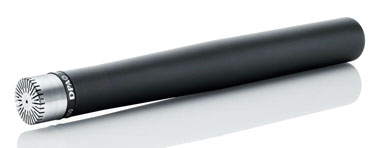

4006-TLX Microphone
Upgrade for 4006-TL
|
| |
Product
Code:4006TLX
|
Model:4006-TLX
Other Microphones -
Omnidirectional
Upgrade your 4006 to the 4006-TL,
a new version of the classic mic with transformerless preamplifier
and new state-of-the-art components.
|
|
| |
|
|
| |
|
| |
|
4006-TLX Microphone Upgrade for
4006-TL
Upgrade your 4006 to
the 4006-TL, a new version of the classic mic with transformerless
preamplifier and new state-of-the-art components.
The 4006-TL builds on the same capsule and acoustical design of the
original while being equipped with a transformerless preamplifier,
as opposed to the transformer technology in the 4006, and is
powered via a standard 48 V phantom power supply. This design
increases the sensitivity and provides an extended low frequency
handling capability (15 Hz to 20 kHz ±2 dB).
Under the upgrade programme you will trade-in your 4006 and receive
a factory-based retrofitting to the DPA 4006-TL with
transformerless preamplifier, close-miking grid, DPA 4006-TL type
ring, calibration chart and new mic case.
The 4006-TL upgrade programme provides our many 4006 fans with the
chance to upgrade inexpensively to an even cleaner approach to
authentic sound reproduction.
Contact your nearest DPA representative to order your 4006-TL
upgrade.
|
|
General
Specifications |
| Directional
characteristics: |
Omnidirectional |
| Principle of
operation: |
Pressure |
| Cartridge type: |
16 mm (0.63 in) pre-polarised
condenser |
| Frequency
range,
± 2 dB: |
15 Hz - 20
kHz |
| Sensitivity, nominal, ±2
dB: |
35 mV/Pa; -29 dB re. 1 V/Pa |
| Equivalent
noise level A-weighted: |
Typ. 15 dB(A) re. 20 µPa
(max. 17 dB(A)) |
| Equiv. noise level ITU-R
BS.468-4: |
Typ. 27 dB (max. 29 dB) |
| S/N ratio,
re. 1 kHz at 1 Pa (94 dB SPL): |
79 dB |
| Total harmonic distortion
(THD): |
<0.5% THD up to 129 dB SPL peak, <1% THD
up to 135 dB SPL peak |
| Dynamic
range: |
Typ. 120 dB |
| Output impedance: |
<200 ohm |
| Max. SPL,
peak before clipping: |
143 dB |
| Cable drive
capability: |
Up to 100 m (328 ft) |
| Power
supply: |
Phantom P48 |
| Connector: |
3-pin XLR-M (Standard P48) |
| Weight: |
150 g (5.29
oz) |
| Current
consumption: |
2.60 mA |
| Capsule
diameter: |
16 mm (0.63
in) |
| Length: |
165 mm (6.5 in) |
| Operating
temperature range: |
-40 to +70° C (-40 to
+158° F) |
|
| |
|
|
|
|
|
