DPA VO4099D

VO4099D

DPA d:vote™ 4099 Clip Microphone for Drum

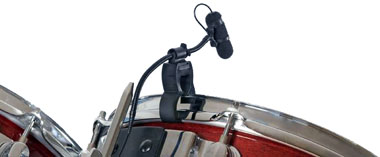

DPA d:vote™ 4099D Clip Microphone for Drum

DPA VO4099D
Product Code: VO4099D
DPA VO4099D




• Excellent frequency and phase response
• Capable of handling extremely high SPLs
• Compact, discreet size
• Versatility in mounting options
• Detachable cable and versatile gooseneck extender

4099D is a microphone solution that allows for high quality audio capture of drums and percussion instruments. The low profile and unobtrusive design provides visual elegance along with uncompromised sound quality and accurate dynamics.

The unique and flexible clip-on system provides fast, stable and repeatable positioning. The mics can be easily positioned at different angles via the flexible gooseneck to fit different drums and allow a variety of sound nuances. The 4099D includes a 3-pin XLR phantom power adapter.

The 4099D unveils a revolutionary new “90 degree” system which provides many more mounting options. By detaching the clip from the gooseneck and re-mounting it turned 90 degrees, the number of mic positions is doubled.

4099D can easily be combined in numerous ways and with a wide variety of microphones. For bass drum, the VC4099 clip fits perfect on the rim and makes a DPA Microphones drum-sound revelation possible at a reasonable price level.

With the d:vote 4099D capable of handling high pressure levels it is also perfect for hi-hats, cymbals, and tom-toms. Simply add the UC4099 Universal Clip to your kit. The UC4099 Universal clip is available as a separate accessory and also comes with the d:vote 4099U.

The package includes
• Supercardioid gooseneck mic with cable
• Integrated windscreen and shock mount system
• Clip to attach on drums and various percussion (also available separately as DC4099)
• XLR adapter


 Directional characteristics:  Supercardioid
 Principle of operation:  Pressure gradient
 Cartridge type:  Pre-polarized condenser
 Frequency range, ± 2 dB:  20 Hz – 20 kHz
 Frequency range, ± 2 dB, 20 cm (7.9 in)  distance:  80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz
 Sensitivity, nominal, ±3 dB:  2 mV/Pa; -54 dB re. 1 V/Pa
 Equivalent noise level A-weighted:  Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))
 S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):  66 dB(A)
 Total harmonic distortion (THD):  <1% THD up to 123 dB SPL peak; < 1 % up to 120 dB SPL RMS sine
 Dynamic range:  95 dB
 Max. SPL, peak before clipping:  152 dB
 Output impedance:  From MicroDot: 30 to 40 ohm, from DAD6001: 100 ohm
 Cable drive capability:  Up to 300 m (984 ft) with DAD6001 XLR adapter
 Output balance principle:  Signal balanced with DAD6001 XLR adapter
 Common Mode Rejection Ratio (CMRR):  > 60 dB at 50 Hz to 15 kHz with DAD6001 XLR adapter
 Polarity:  Positively increasing sound pressure produces positive going voltage at  MicroDot pin (and pin 2 on DAD6001 XLR adapter)
 Power supply:  Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD6001 XLR adapter
 Current consumption:  Typ. 1.5 mA (microphone). 3.5 mA with DAD6001 XLR adapter
 Connector:  MicroDot
 Color:  Black
 Capsule diameter:  5.4 mm (0.2 in)
 Cable length:  1.8 m (6 ft)
 Gooseneck, length:  140 mm (5.5 in)
 Microphone length:  45 mm (1.8 in)
 Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
 Relative humidity (RH):  Up to 90 %
