3541 Large Diaphragm Microphone Kit

Home > DPA Pro Audio > Other Microphones > Other Microphones Kits > 3541 Large Diaphragm Microphone Kit

   3541 Large Diaphragm Microphone Kit


Product Code:3541Stereo
 LaCie d2 Network 2 301504

 Model:3541
 Other Microphones - Microphone Kits

The 3541 is a complete microphone kit for all kinds of high quality soloist recordings. It is specially designed for the demanding requirements of everyday use in the recording studio where transparency, clarity and brightness are paramount.







3541 Large Diaphragm Microphone Kit

  • for all kinds of high quality soloist recordings

  • highly versatile modular capsule and preamplifier system

  • high sensitivity and low self noise

The 3541 is a complete microphone kit for all kinds of high quality soloist recordings. It is specially designed for the demanding requirements of everyday use in the recording studio where transparency, clarity and brightness are paramount.

The omnidirectional microphone capsule module MMC4041 features extremely high sensitivity and low self noise. You will experience total transparency of this microphone no matter if you choose the high voltage solid state preamplifier MMP4000-S or tube preamplifier MMP4000-T2.

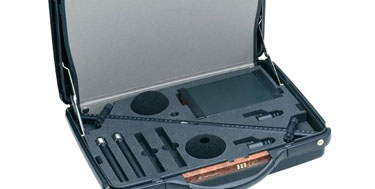

All modules are packed in a convenient carrying case with a shock mount, a pop filter, windscreen and cable in addition to the Microphone Amplifier HMA5000.

A highly cost effective solution for the discerning recording studio, producer or musician with focus on quality.

General Specifications
Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: 24 mm (1 in) condenser w. stainless steel diaphragm
Frequency range, ± 2 dB: 10 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
Sensitivity, nominal +/- 2 dB at 250 Hz: Tube preamp.: 85 mV/Pa
Equivalent noise level A-weighted: Tube preamp.: Max. 10 dB(A) re. 20 µPa
Equiv. noise level ITU-R BS.468-4: Max 22 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): 85 dB
Total harmonic distortion (THD): <0.5% up to 120 dB SPL peak, <1% up to 126 dB SPL peak
Dynamic range: 117 dB
Max. SPL, peak before clipping: 144 dB SPL peak before clipping
Output impedance: Matches HMA5000 input
Cable drive capability: With HMA5000: Up to 300 m (984 ft)
Current consumption: 2.20 mA
Connector: Tube preamp: 7-pin modified XLR-M (High Voltage)
Weight: 190 g (6.7 oz)
Microphone length: 170 mm (6.69 in)
