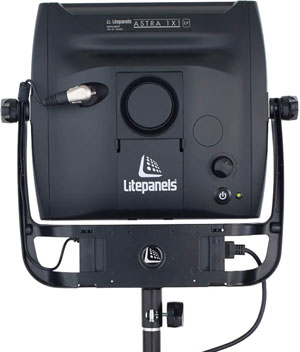

Litepanels Astra 1x1 EP Daylight Next generation LED panel

Home > Lite Panels > LED Lighting > Astra 1x1 EP Daylight

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall / Seletar Airport Passenger Terminal / Marina Bay Cruise Centre Singapore/ International Passenger Terminal at Harbourfront Centre GST Refund Centre before departure with goods within 30 Days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme's conditions and eligibility criteria can claim for the GST refund. Please visit: https://www.iras.gov.sg/IRASHome/GST/Consumers/Tourist-Refund-Scheme/ for GST Guide for Visitors on Tourist Refund Scheme.


  • Litepanels Astra 1x1 EP Daylight
    Product code: 935-2001
    Buy Sell Sales Litepanels Astra 1X1 EP Daylight (935-2001)
    review button
    Lite Panels Comparison Chart

  • Features
    - Output is 2X brighter than traditional LED panels
    - Superior color reproduction
    - Efficient thermal management
    - Ultra-smooth dimming from 100% to 0
    - Flexible, modular concept
    - Modern fixture design
    - Custom curved yoke design
Astra 1x1 EP Daylight
The ASTRA 1x1 EP Daylight panel with its mid-range intensity level builds on the legacy of the original 1x1 fixture, which revolutionized the lighting industry. This innovative daylight model was years in the making, with every design element of this next generation panel being meticulously crafted. Following the Litepanels tradition of a one square foot form factor, the ASTRA series is designed with select premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1 with superior color reproduction and a light output that is two times brighter than traditional LED panels. This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

Output is 2X brighter than traditional LED panels
- High performance LEDs with custom paired optics
- Higher intensity = Longer throw = Wider effective beam spread

Superior color reproduction
- High color rendition (CRI)
- Accurate color temperature

Efficient thermal management
- Completely silent passive cooling mode

Ultra-smooth dimming from 100% to 0
- Flicker-free at any frame rate or shutter angle

Flexible, modular concept
- Optional communications module allows the brightness to be controlled via DMX512 protocol (Additional module options under development)
- Optional yoke mounted Gold Mount® or V-Mount battery plates

Modern fixture design
- Easily identifiable and ergonomic manual controls for dimming and power status
- Aluminum I-beam core construction to provide maximum durability and superior thermal management
- Aluminum accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector

Custom curved yoke design
- Wide, unobstructed tilt range
- Yoke mounted power supply and optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate ¼-20 mounting points

Specification
- Max. power draw (Watts) : 56
- Comparative output : 300W HMI
- Beam angle (degrees) : 45
- Remote control available : Yes
- Optics : Custom TIR Lens
- Weight : 3.2 kg
- Power supply : AC/DC 120-240VAC
- Fixture type : Panel Fixture
- Colour temperature : Daylight

What's in the box:
- Astra 1x1 EP Daylight fixture
- Manual Yoke
- Power Supply and US & EU Power Cords.
