lite panels

LitePanels Sola6

 Sola Fresnel

Litepanels Sola Fresnel LED
 Home > Lite Panels > Litepanels Sola 6 Fresnel
Litepanels Sola Fresnel Sola 6 - The Fresnel for the 21st Century (906-2002)
Litepanels Focusable Fresnels Feature Breakthrough Technology
Litepanels brings the Fresnel into the 21st century with the new Sola™ series. With beam control of 70° to 10°, the revolutionary new Solas provide the controllability and single-shadow properties inherent in a Fresnel light, but utilize just a fraction the power of conventional fixtures.

Highly Controllable
Like all Litepanels, Sola Fresnels feature instant dimming from 100% to 0 with no noticeable color shift. The Sola6 provide on-fixture motorized control of focus and local dimming via a convenient touch screen, and are also remote-controllable via their integrated DMX interface. Output is fully flicker free, and remains consistent even as the battery voltage goes down.

Power Efficient and Lightweight
Employing Litepanels’ ultra-efficient LEDs, Solas draw 90% less power than conventional tungsten lights, with very little heat generation. Additionally, Litepanels’ cool-to-the-touch lighting systems substantially cut down on air conditioning requirements in studio applications. Importantly, the Solas weigh only 1/3 as much as their HMI predecessors with no external ballasts. The fixtures have a universal AC input and can be used on any 85-245 volt power worldwide.

Litepanels Solas
• The Sola6 draws 75 watts yet produces output equivalent to a 650W tungsten unit, and weighs 6 lbs. (2.7kg).

The most extensive range of LED Fresnels
In addition to the new Sola 12, the full Sola Series of LED Fresnels includes the Sola 6 (6” lens), Sola 4 (4” lens) and the Sola ENG (3” lens).



View Anton Bauer Battery Chart for
Sola 6

Litepanels Sola Fresnel LED
Product code: SOLAFRESNEL
Sola 6 9062002

Rethink Fresnel™
Litepanels Solas
Sola6 Buy Sell Sales Litepanels Solat Fresnel Sola 6
Sola6 Advantages
  • Proprietary Heat-free LED technology
  • Produces bright, HD friendly light
  • Integrated dimmer 100% to 0 with no noticeable color shift
  • Flicker-free light output
  • Eco-Friendly—Uses up to 95% less energy
  • 50,000+ hours of LED life
  • Highly efficient
  • Lightweight
  • Instant restrike
  • No ballast necessary
Litepanels Sola Fresnel LED

Control Via
  • Traditional on-fixture knobs access motorized mechanical focus & electronic dimming
  • Screen shows dimming, focus, status, temperature, DMX address
  • Integrated DMX interface
Package Includes
  • Sola6 Fresnel LED Light Fixture
  • Mounting Yoke
  • Power Cable
Specifications
  • Sola6
  • Size: 6”x 7” x 9” (152mm x 178mm x 229mm)
  • Weight: 6 lbs. (2.7 kg)
  • Fresnel lens: 6 inch (15.24cm)
  • Power: 75W (equiv. to 650W tungsten)
  • Power Supply: internal universal PFC 85-245VAC
Sola6 Individual Gel
No Type  Place your order here
1  410 - Opal Frost (900-6410) Litepanels Sola Fresnel LED
2  204 Full CTO (900-6204) Litepanels Sola Fresnel LED
3  205 1/2 CTO (900-6205) Litepanels Sola Fresnel LED
4  206 1/4 CTO (900-6206) Litepanels Sola Fresnel LED
5  223 1/8 CTO (900-6223) Litepanels Sola Fresnel LED
6  Yoke Kit (Black) (900-6295) Yoke Kit (Black) (900-6295)
7  Power Supply (900-6250) Buy Sell Sales Litepanels Sola 6 / Inca 6 Power Supply
8  D-Tap to 3-Pin XLR Female Cable (900-6251) D-Tap to 3-Pin XLR Female Cable
9  P-Tap to 3-pin XLR cable (900-0024) Buy Sell Sales Litepanels P-Tap to 3-pin XLR cable
10  Pole Operated Yoke (900-6203) Buy Sell Sales LitePanels Pole Operated Yoke for Sola 6 and Inca 6
11  Fixture Cover (900-6222) Buy Sell Sales LitePanels Fixture Cover for Sola 6 and Inca 6
12  Daylight Fresnel EU Version (906-2102) Buy Sell Sales LitePanels Sola 6 Daylight Fresnel (EU Version)

Optional Accessories
No Image No Image No Image
Sola6 8-Leaf Barn Door Sola6 Filter Frame Sola6 Pole Assisted Yoke
900-6221
(S68BD)
900-0006
(Discontinued)
(S6FF)
900-6203
Less than
USD 250
Less than
USD 250
Less than
USD
460
Litepanels Sola Fresnel LED   Litepanels Sola Fresnel LED

No Image No Image Litepanels Sola Fresnel LED
Sola 6 Gel Filter Set (5 pieces)
with Carrying Bag
Sola 4/Sola 6 Gel Carrying Bag RJ45 to 5-Pin XLR (Male) Conversion Cable
900-6201
(SOLA6GELCTOS)
900-6207
(SOLAGELBAG)
900-0006
(RJ45XLR)
Less than
USD
195
Less than
USD 80
Less than
USD 75
Litepanels Sola Fresnel LED Litepanels Sola Fresnel LED Litepanels Sola Fresnel LED


Litepanels Sola Fresnel LED

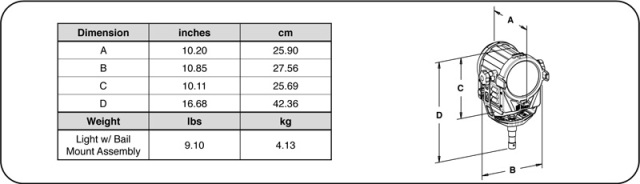

Sola6™ Physical Dimensions

Litepanels Sola Fresnel LED
