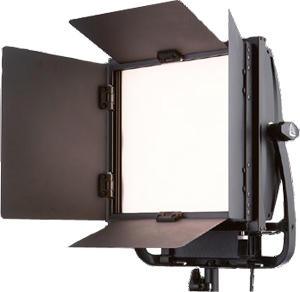

Litepanels Astra 1x1 Soft Bi-Color LED panels in a better light

Home> Lite Panels > LED Lighting > Astra 1x1 Soft Bi-Color

7% Goods Service Tax (GST) will be imposed over the total invoice value if purchased locally in Singapore. However if you are a tourist visiting Singapore, this GST amount can be refunded at the Changi International Airport Departure Hall / Seletar Airport Passenger Terminal / Marina Bay Cruise Centre Singapore/ International Passenger Terminal at Harbourfront Centre GST Refund Centre before departure with goods within 30 Days from the date of purchase. Please note that only Tourists who have met the Tourist Refund Scheme's conditions and eligibility criteria can claim for the GST refund. Please visit: for GST Guide for Visitors on Tourist Refund Scheme.

  • Litepanels Astra 1x1 Soft Bi-Color
    Product code: 935-5001
    Buy Sell Sales Litepanels Astra 1x1 Soft Bi-Color
    review button
  • Features
    - Flexible, modular concept
    - Modern fixture design
    - Custom curved yoke design
    - Output is brighter than traditional LED panels
    - Superior color reproduction
    - Ultra-smooth dimming
    - Efficient thermal management with user selectable dual cooling modes

Soft LED panels in a better light
The Astra 1x1 Soft Bi-Color panel builds on the popularity of the Astra 1x1 Family, the next generation of LED panels from the lighting professionals who revolutionized the lighting industry. The innovative Astra family of LED panels was years in the making, with every design element of these next generation panels being meticulously crafted.

Following the Litepanels tradition of a one square foot form factor, the Astra soft series is designed with select premium quality, high CRI, surface mount LEDs and paired with a soft diffusion panel that provides the Astra 1x1 soft series with a soft wrap around quality perfect for lighting talent and taking the edge off reflective surfaces. The Astra Soft Bi-color has an impressive output that rates among the highest of soft LED panels. This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

Flexible, modular concept
- Optional communications module allows the brightness, color temperature, and cooling mode to be controlled via DMX or Bluetooth
- Optional yoke mounted Gold Mount® or V-Mount battery plates
- Field replaceable fan module and external power supply

Modern fixture design
- Easily identifiable and ergonomic manual controls for dimming, color, and power status
- Aluminum I-beam core construction to provide maximum durability and superior thermal management
- Aluminum accessory mounting points and lens/filter rails
- End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
- Durable, industry standard 3-pin XLR locking power connector

Custom curved yoke design
- Wide, unobstructed tilt range
- Yoke mounted power supply and optional battery plates with dual integrated cable guides
- Removable TVMP connector for flexible mounting options
- Two alternate ¼-20 mounting points

Output is brighter than traditional LED panels
- High performance LEDs with Soft diffusion panel

Superior color reproduction
- High color rendition (CRI)
- Adjustable (daylight to tungsten), accurate color temperatures

Efficient thermal management with user selectable dual cooling modes
- Completely silent passive cooling mode
- Ultra-quiet active cooling mode with double light output

Ultra-smooth dimming
- No noticeable color shift throughout the entire range
- Flicker-free at any frame rate or shutter angle

Color Temperature: Tungsten-Daylight
Size: 18.5" x 16.3" x 5.3" (46.9cm x 41.3cm x 13.5cm)
Weight: 7.6lbs / 3.4kg
Power Requirements: 13-24VDC
Maximum Power Draw: 110W
International AC Power Supply: 24VDC via AC adapter 100-240 VAC
DMX via Optional Communications Module (RJ45 or 5-Pin XLR)
Wireless control via Bluetooth Communications Module
