CANON BU-47H Remote
Control Pan-Tilt System
|
|
BU-47H (For Outdoor use)
As the worldwide transition to HD (high definition)
imaging continues to accelerate,many video content creators including broadcasters, cable networks and business/industrial entities are seeking cost-effective, turnkey, remotely-controllable
Pan-Tilt-Zoom (PTZ) HD camera systems to extend creative flexibilities. To meet thesediverse needs, Canon has harnessed multiple unique technologies and experiencein HD optics and digital
cameras, robotics, and control software, to produce a costeffective, integrated HD lens-camera PTZ product offering exceptional HD picture quality.
The BU-47H is a rugged yet elegant outdoor PTZ system-following a legacy of decades of Canon expertise in designing such systems. A sister product, the BU-51H, has a design tailored for exacting
indoor applications.
|
Product Code: BU-47H
|
| Main Features |
· HIGH QUALITY HDTV/SDTV VIDEO IMAGES
The BU-47H have a 1/3 inch 3CMOS camera with 2,370,000 pixels per CMOS. It offers exceptional video quality for broadcasting, event
coverage and high quality surveillance, among others.
·
HIGH OPTICAL PERFORMANCE AND IMAGE STABILIZATION
The 3 CMOS HD camera combines a 18X Optical Zoom HD lens (4.1-73.8mm, 6.2-111mm with 1.5X Digital Extender) with Auto Focus
and Image Stabilization, providing exceptional HD video images with enhanced operational flexibilities.
· WEATHERPROOF
The BU-47H is an extremely sturdy, dustproof/waterproof pan-tilt system with an IP45 enclosure rating. Well suited for outdoor
operation, the BU-47H also incorporates a built-in wiper.
· WIDE PAN-TILT COVERAGE
The BU-47H can pan through ±340° and tilt +30° ~ −50° in highly precise and smoothly choreographed
movements specifically designed to address multiple applications.
·
NON-PROPRIETARY PROTOCOL
As the control protocol is non-proprietary and open to the public, a user or system integrator can provide their own control system or
contract with a third party provider.
·
VARIETY OF OUTPUTS
The camera outputs an uncompressed HD-SDI (or SD-SDI) signal. The HD-SDI signal and an SD Composite signal (NTSC or PAL)* can be
output simultaneously. The SD signal can be used for monitoring. In addition, the BU-47H features GENLOCK for video synchronization.
* Please request NTSC or PAL format at time of purchase
· SLEEK DESIGN
The elegant design makes the BU-47H blend in very naturally with buildings and other city landscapes.
|
|

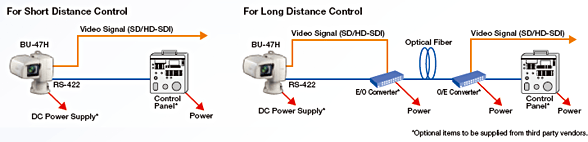

General Specifications
|
| Pan Tilt Section |
Operation condition |
Outdoor |
| Operational angle |
Panning:340°,Tilting:+30°~-50° |
| Operating speed |
Panning:0.5~25°/s,Tilting 0.3~20°/s |
| Repeatability |
Within ±10' |
| Connector Receptacle |
DC terminal, Control(RS-422), SDI out, SD composite, Genlock, Aux out |
| Video output |
HD-SDI (Embedded audio) output BNC1 Line (receptacle section)
SD composite (NTSC/PAL) output BNC1 Line (receptacle section) |
| GEN LOCK input |
BNC 1 Line (receptacle section) (3value/BB) |
| Operating temperature |
Ambient -15~40°C / ~90% (Without being dew condensation) |
| Noise |
NC55 below |
| Power source |
DC10.5~15V 80W |
| Microphone |
Input: pedestal section |
| Wiper |
Built-in Wiper |
| Washer |
Connector on Pedestal Section for Third Party Washer Unit |
| Dustproof waterproof efficiency |
IP45 |
| Wind Velocity-Resistance |
0~25m/s Normal operation
25~35m/s Operation possible
35~60m/s Non destruction |
| Size (Include Camera & Lens) |
386(W) x 390(H) x 337(D) mm |
| Mass (Include Camera & Lens) |
Approx. 17kg |
| Camera & lens |
Pick-Up device |
1/3" HD 3CMOS, total of approx. 2.37mega pixels per CMOS |
| Range of Focal Length |
4.1~73.8mm (6.2~111mm w/1.5x)
F1.6~2.8 (2/3" conversion: 7.4~134mm, 11.1~201mm w/1.5x) |
| Zoom ratio |
18x Optical zoom (1.5x digital extender) |
| Focusing system |
AUTO, Manual |
| IRIS |
AUTO, Manual |
| Frame rate and Shutter speed |
BU-47H 1AM /
BU-51H 1A |
Frame Rate: 60i Shutter Speed:1/4, 1/15, 1/60, 1/100, 1/1000 |
BU-47H 2AM /
BU-51H 2A* |
Frame Rate: 50i Shutter Speed:1/3, 1/12, 1/50, 1/100, 1/1000 |
| Gain |
AUTO, 0dB, 6dB, 12dB, 18dB, 33dB |
| White balance |
AUTO, Set |
| CCU adjustment |
White balance, Master pedestal, R-gain, B-gain, G-gain, Hue, Master black(R/G/B), Set up level, Gamma, Knee, Sharpness, Knee aperture, Skin detail, Color
matrix, Horizontal detail frequency |
| GEN LOCK Phase adjustment |
Adjustment range approx. ±0.4H |
| Image Stabilizer |
Optical Shift method |
| Optical Filter |
CLEAR, 1/4ND, 1/16ND, 1/64ND |
| Shooting Mode |
AUTO, Manual |
|
|
