CANON BU-46H Remote
Control Pan-Tilt System
|
|
BU-46H (For Outdoor use)
As the worldwide transition to HD (high definition)
imaging continues to accelerate,many video content creators including broadcasters, cable networks and business/industrial entities are seeking cost-effective, turnkey, remotely-controllable
Pan-Tilt-Zoom (PTZ) HD camera systems to extend creative flexibilities. To meet thesediverse needs, Canon has harnessed multiple unique technologies and experiencein HD optics and digital
cameras, robotics, and control software, to produce a costeffective, integrated HD lens-camera PTZ product offering exceptional HD picture quality.
The BU-46H is a rugged yet elegant outdoor PTZ system-following a legacy of decades of Canon expertise in designing such systems. A sister product, the BU-51H, has a design tailored for exacting indoor applications.
|
Product Code:BU-46H
|
| Main Features |
·
HIGH QUALITY HDTV/SDTV VIDEO IMAGES
The BU-46H has a 1/3 inch 3CCD HD camera with 1,670,000 pixels per CCD. It offers exceptional video quality for broadcasting, event
coverage and high quality surveillance, among others.
·
NON-PROPRIETARY PROTOCOL
As the control protocol is non-proprietary and open to the public, a user or system integrator can provide their own control system or
contract with a third party provider.
·
HIGH OPTICAL PERFORMANCE AND IMAGE STABILIZATION
The 3 CCD HD camera combines a 20X Optical Zoom HD lens (4.5-90mm, 9-180mm with 2X Digital Extender) with Auto Focus and Image
Stabilization, providing exceptional HD video images with enhanced operational fl exibilities.
· VARIETY OF OUTPUTS
The camera outputs an uncompressed HD-SDI (or SD-SDI) signal. The HD-SDI signal and an SD Composite signal (NTSC or PAL)* can be
output simultaneously. The SD signal can be used for monitoring. In addition, the BU-46H features GENLOCK for video synchronization.
* Please request NTSC or PAL format at time of purchase
·
NIGHT MODE
The BU-46H now includes a newly designed "night mode". The shutter speed is slowed down to a minimum of 1/4(60i,30F) or 1/3(50i,25F,24F) allowing frame accumulation that elevates camera
sensitivity.
·
WEATHERPROOF
The BU-46H is an extremely sturdy, dustproof/waterproof pan-tilt system with an IP45enclosure rating. Well suited for outdoor
operation, the BU-46H also incorporates a builtin wiper.
·
WIDE PAN-TILT COVERAGE
The BU-46H can pan through ±340° and tilt +30°~−50° in highly precise and smoothly
choreographed movements specifi cally designed to address multiple applications.
·
SLEEK DESIGN
The elegant design makes the BU-46H blend in very naturally with buildings and other city landscapes.
|
|
General Specifications
|
| Pan Tilt Section |
Operation condition |
Outdoor |
| Operational angle |
Panning:340°,Tilting:+30°~-50° |
| Operating speed |
Panning:0.5~25°/s,Tilting 0.3~20°/s |
| Repeatability |
Within ±10' |
| Wiper |
Built-in Wiper |
| Washer |
Connector on Pedestal Section for Third Party Washer Unit |
| Michrophone |
Input:pedestal section |
| Connector Receptacle |

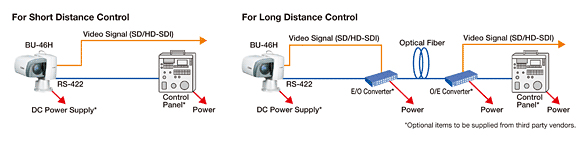

DC terminal, Control(RS-422), SDI out, SD composite, Genlock, Aux out |
| Video output |
HD-SDI (Embedded audio output BNC1 Line (receptacle section)
SD composite (NTSC/PAL) output BNC1 Line(receptacle section) |
| GEN LOCK input |
BNC 1 Line (receptacle section) (3value/BB) |
| Operating temperature |
Ambient -15~40°C / ~90% (Without being dew condensation) |
| Wind Velocity-Resistance |
0~25m/s Normal operation
25~40m/s Operation possible
40~60m/s Non destruction |
| Noise |
NC55 below |
| Power source |
DC10.5~15V 70W |
| Size |
318.5(W) x 390(H) x 386(D) mm |
| Mass |
Approx. 17kg |
| Camera & lens |
Pick-Up device |
1/3" HD 3CCD, total of approx. 1.67mega pixels per CCD |
| Range of Focal Length |
4.5~90mm(9~180mm w/2x) F1.6~3.5 (2/3"conversion: 8.25~165mm, 16.5~330mm w/2x)
8.25~165mm (2/3" conversion) |
| Zoom ratio |
20x Optical zoom (2x digital extender) |
| Focusing system |
AUTO, Manual |
| IRIS |
AUTO, Manual |
| Frame rate and Shutter speed |
BU-46H 1A |
Frame Rate: 60i Shutter Speed:1/4, 1/15, 1/60, 1/100, 1/1000 |
| BU-46H 2A |
Frame Rate: 50i Shutter Speed:1/3, 1/12, 1/50, 1/100, 1/1000 |
| Gain |
AUTO, 0dB, 6dB, 12dB, 18dB, 36dB |
| White balance |
AUTO, Set |
| Picture quality adjustment |
Master pedestal, R-gain ,B-gain, G-gain, color tone, color gain, knee, ganma, sharpness, set up level, color matrix, black, horizontal detail frequency |
| GEN LOCK Phase adjustment |
Adjustment range approx. ±0.4H |
| Image Stabilizer |
Optical Shift method |
| Optical Filter |
CLEAR, 1/6ND, 1/32ND (Remote Control) |
| Shooting Mode |
AUTO, Manual, Night |
|
|
