VP-11,

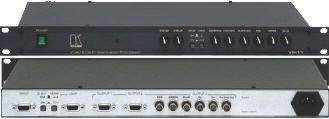

VGA/XGA Presentation Processor VP11
|
|
|
|
|
The VP-11 is a high
performance processor for computer graphics video signals with
resolutions ranging from VGA through UXGA and higher. It allows the
user to adjust and enhance an incoming computer graphics signal and
distribute the processed signal to three simultaneous outputs.
Typical
Applications:
-
Any professional
multimedia and presentation application where full image control is
needed.
-
Color correction and
image enhancement of projector images in public, educational and
stage applications.
-
Special effects
generation in video/data projection applications
|
|
|
FEATURES
|
|
-
High Resolution -
300MHz (- 3dB).
-
Proc Amp Control -
Contrast, definition, black level, & R, G, B
level/gain.
-
Timing Control - H/V
Sync Delay.
-
Sync Output - H/V,
RGSB, or RGBS.
-
Outputs - 2x15-pin
HD connectors & 1 RGBHV/S.
-
Looping
Input.
- Selectable Input Signal
Termination.
-
ID Bit
Control.
-
Standard 19”
Rack Mount Size - 1U.
|
|
|
SPECIFICATIONS
|
|
| INPUTS: |
Analog red, green, blue signals - 0.7Vpp/75Ω, H &
V syncs, TTL level looping on HD15F connectors with a termination
switch and ID Bit control switch. |
|
|
OUTPUTS: |
Two analog red, green, blue signals
- 0.7Vpp/75Ω, H & V syncs, TTL level looping on HD15F
connectors.One analog red, green, blue signals - 0.7Vpp/75Ω,
H, V and Cs syncs, TTL or analog level on BNC
connectors. |
|
| MAX OUT: |
1.7Vpp. |
|
|
VIDEO BANDWIDTH
(-3dB): |
300MHz. |
|
| DIFF. GAIN: |
0.13%. |
|
|
DIFF. PHASE: |
0.04 Deg. |
|
| K-FACTOR: |
0.05%. |
|
|
VIDEO S/N RATIO: |
72.5dB. |
|
| NON-LINEARITY: |
0.1%. |
|
|
CONTROLS: |
Level R, G, B: - 0.8 to + 5.1dB;
Black (DC offset): - 1.3 to + 1Volt; Contrast: 0 to + 7.7dB;
Definition: 0 to +5.7 dB. @ 5.8 MHz. Delay enable switch, G/G+Sync
switch, H & V delay controls. |
|
|
POWER SOURCE: |
230 VAC, 50/60 Hz, (115 VAC, U.S.A.)
4.2 VA max. |
|
|
DIMENSIONS: |
19-inch (W), 7-inch (D) 1U (H) rack
mountable. |
|
|
WEIGHT: |
2.6kg. (5.7lbs.)
approx. |
|
|
ACCESSORIES: |
Power cord. |
|
| |
|
|
|
|
